Dayton Definite Purpose Magnetic Contactor: 3 Poles, 208-240V AC, 40 A - Non-Reversing Definite Purpose Contactors
DaytonNon-Reversing Definite Purpose Contactors

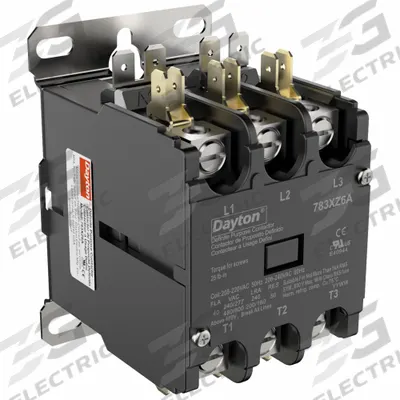

Dayton Definite Purpose Magnetic Contactor: 3 Poles, 208-240V AC, 40 A

The DAYTON Definite Purpose Magnetic Contactor (MPN 783XZ6) is a non-reversing, three-pole contactor with a 3NO main pole contact form. It features a 208/240V AC coil voltage, a maximum voltage rating of 600V AC, and…

SKU 3G-OTH-42968

Brand
Dayton
Item
Definite Purpose Magnetic Contactor: 3 Poles, 208-240V AC, 40 A
Category
Non-Reversing Definite Purpose Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
783XZ6
Type
40 A, Non-Reversing
AC
208-240V
Phase
Three
Coil Voltage
208/240V AC
Mounting Style
Through Panel
Contactor Style
HVACR Definite Purpose Contactor
Main Pole Contact Form
3NO
Maximum Voltage Rating
600V AC
Terminal Connection Type
Box Lugs
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Definite Purpose Magnetic Contactor (MPN 783XZ6) is a non-reversing, three-pole contactor with a 3NO main pole contact form. It features a 208/240V AC coil voltage, a maximum voltage rating of 600V AC, and box lug terminal connections. Designed as an HVACR definite purpose contactor, it offers through-panel mounting for three-phase applications.

Frequently Asked Questions

What is the DAYTON Definite Purpose Magnetic Contactor 783XZ6 used for?

The DAYTON Definite Purpose Magnetic Contactor 783XZ6 is used in HVACR systems to control compressors, fans, and pumps in three-phase applications. It switches power to motors and other loads, providing reliable on/off control in commercial and industrial refrigeration, air conditioning, and heating equipment.

What are the specifications of the DAYTON 783XZ6 contactor?

The DAYTON 783XZ6 is a non-reversing, three-pole definite purpose contactor with a 3NO main pole contact form. It has a coil voltage of 208/240V AC, maximum voltage rating of 600V AC, and 40 A current rating. Terminal connections are box lugs, and mounting is through-panel for three-phase HVACR applications.

Where to buy the DAYTON 783XZ6 contactor worldwide?

You can source the DAYTON 783XZ6 contactor worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine DAYTON components for HVACR systems.

How to install the DAYTON definite purpose contactor 783XZ6?

To install the DAYTON 783XZ6, mount it through the panel using the provided holes, ensuring proper alignment. Connect three-phase power and load wires to the box lug terminals, torqueing to manufacturer specs. Apply 208/240V AC to the coil terminals. Always follow local electrical codes and de-energize before installation.
