Dayton Mini T-Type Jack: Jack, For Type T Thermocouple Type, Mini Jack, 2 Pins - Thermocouple Jacks & Connectors
DaytonThermocouple Jacks & Connectors

Dayton Mini T-Type Jack: Jack, For Type T Thermocouple Type, Mini Jack, 2 Pins

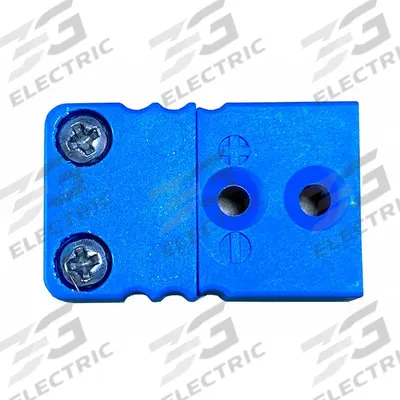

The DAYTON Mini T-Type Jack is a plastic-bodied thermocouple connector designed for Type T thermocouple applications. This blue mini jack features two flat copper pins and is configured as a jack-type connector (MPN…

SKU 3G-OTH-179950

Brand
Dayton
Item
Mini T-Type Jack: Jack, For Type T Thermocouple Type, Mini Jack, 2 Pins
Category
Thermocouple Jacks & Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
G-CMJ-T/1.5MM
Type
For Type T Thermocouple Type, Mini Jack, Flat, Flat
Pins
2
Color
Blue
Pin Shape
Flat
Product Type
Jack
Body Material
Plastic
Connector Type
Mini Jack
Contact Material
Copper
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Mini T-Type Jack is a plastic-bodied thermocouple connector designed for Type T thermocouple applications. This blue mini jack features two flat copper pins and is configured as a jack-type connector (MPN G-CMJ-T/1.5MM).

Frequently Asked Questions

What is the DAYTON Mini T-Type Jack used for?

The DAYTON Mini T-Type Jack is used to connect Type T thermocouple wires in temperature sensing applications. It is commonly employed in industrial process control, HVAC systems, and laboratory equipment where reliable thermocouple signal transmission is required.

What are the specifications of the DAYTON Mini T-Type Jack?

The DAYTON Mini T-Type Jack (MPN G-CMJ-T/1.5MM) is a blue plastic-bodied connector with two flat copper pins. It is a mini jack type designed for Type T thermocouples. The body material is plastic, and the contact material is copper.

Where to buy the DAYTON Mini T-Type Jack worldwide?

The DAYTON Mini T-Type Jack is available to order through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact 3G Electric for availability and lead time.

How to install the DAYTON Mini T-Type Jack?

To install the DAYTON Mini T-Type Jack, strip the thermocouple wire ends and insert them into the two flat copper pin terminals. Secure the wires by tightening the screw terminals. Ensure correct polarity for Type T thermocouples to maintain accurate temperature readings.
