Dayton Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel - Flammable Vapor Belt-Drive Fans with Drive
DaytonFlammable Vapor Belt-Drive Fans with Drive

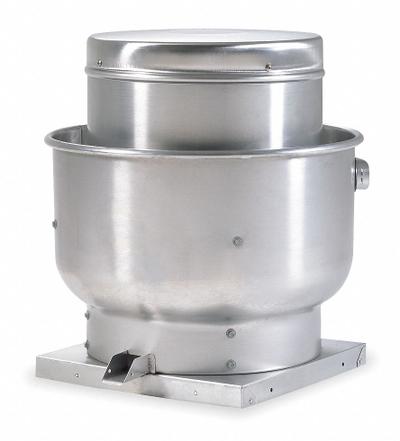

Dayton Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel

The Dayton Centrifugal Upblast Roof Exhaust Fan (SKU 7HY69) is a flammable vapor belt-drive fan with drive package, featuring an 18 1/2 in wheel and 4,477 cfm exhaust airflow. It is unassembled, square-based, and…

SKU 3G-OTH-80754

Brand
Dayton
Item
Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel
Category
Flammable Vapor Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7HY69
Type
Includes Drive Pack, 4,477 cfm
Wheel
18 1/2 in
Assembly
Unassembled
Base Shape
Square
Drive Package
Includes Drive Package
Motor Enclosure
Totally Enclosed Fan Cooled
Motor Efficiency
Standard Motor
Number of Speeds
1
Mounting Location
Roof
Nameplate Voltage
208-230/460V AC
High-Efficiency Motor
No
Includes Drive Package
Yes
Hazardous Location Rating
Class I Groups C & D, Class II Groups E, F & G
Hazardous Location Specification
Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G
Exhaust Airflow @ 0.000 in SP - Range
2,000 to 4,999 cfm
Exhaust Airflow @ 0.500 in SP - Range
2,000 to 4,999 cfm
For High-Static Pressure Applications
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Centrifugal Upblast Roof Exhaust Fan (SKU 7HY69) is a flammable vapor belt-drive fan with drive package, featuring an 18 1/2 in wheel and 4,477 cfm exhaust airflow. It is unassembled, square-based, and roof-mounted, with a totally enclosed fan-cooled motor rated at 208-230/460V AC. This fan is rated for hazardous locations: Class I Groups C & D and Class II Groups E, F & G.
