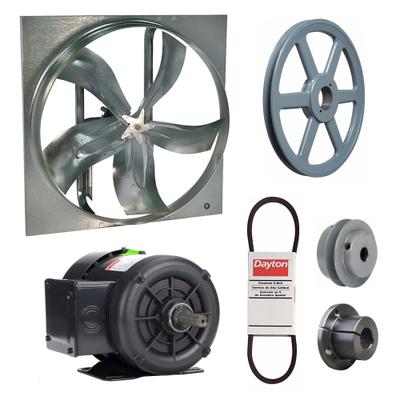

Dayton Exhaust Fan with Drive Package: Belt Drive, 24 in Blade, 1/2 hp, 6,950 cfm - Belt-Drive Panel Exhaust Fans with Drive Package
DaytonBelt-Drive Panel Exhaust Fans with Drive Package

Dayton Exhaust Fan with Drive Package: Belt Drive, 24 in Blade, 1/2 hp, 6,950 cfm

The Dayton 7M7X0 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 24-inch blade, 1/2 hp, and 6,950 cfm. It operates on 208-230/460V AC, 3-phase power with a totally enclosed fan-cooled…

SKU 3G-OTH-81763

Brand
Dayton
Item
Exhaust Fan with Drive Package: Belt Drive, 24 in Blade, 1/2 hp, 6,950 cfm
Category
Belt-Drive Panel Exhaust Fans with Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7M7X0
Type
1/2 hp, 6,950 cfm, 3 ph
AC
208-230/460V
Blade
24 in
Assembled
Unassembled
Guard Type
None
Motor Type
3-Phase
Frame Finish
Zinc Plated
Frame Material
Steel
Motor Enclosure
Totally Enclosed Fan Cooled
Enclosure Design
Totally Enclosed Motor
Motor Insulation
Class B
Number of Speeds
1
Nameplate Voltage
208-230/460V AC
Guard Type Subheads
Without Intake Guards
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7M7X0 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 24-inch blade, 1/2 hp, and 6,950 cfm. It operates on 208-230/460V AC, 3-phase power with a totally enclosed fan-cooled motor, Class B insulation, and a single speed. The fan has a zinc-plated steel frame and is supplied without intake guards.
