Dayton Parallel Shaft DC Gearmotor - Parallel Shaft DC Gearmotors
DaytonParallel Shaft DC Gearmotors

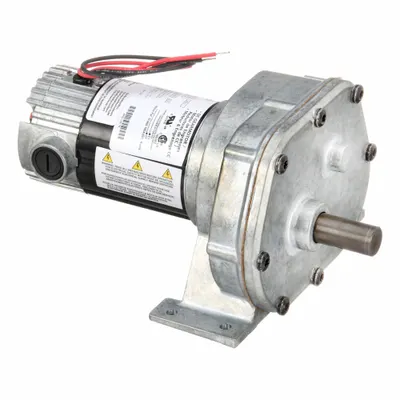

Dayton Parallel Shaft DC Gearmotor

The DAYTON DC Gearmotor: Parallel is a parallel shaft DC gearmotor with a permanent magnet DC motor type. It operates at 90V DC, 6.5 RPM, with a maximum torque of 500 in-lb and an input horsepower of 1/15 hp. The…

SKU 3G-OTH-120359

Brand
Dayton
Item
Parallel Shaft DC Gearmotor
Category
Parallel Shaft DC Gearmotors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.

Technical Specifications

Dayton
Type
TENV, 6.5 RPM, 500 in-lb Max Torque
DC
90V
Motor Type
Permanent Magnet DC
Input Horsepower
1/15 hp
Full Load Current
0.84 A

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON DC Gearmotor: Parallel is a parallel shaft DC gearmotor with a permanent magnet DC motor type. It operates at 90V DC, 6.5 RPM, with a maximum torque of 500 in-lb and an input horsepower of 1/15 hp. The motor has a full load current of 0.84 A and is TENV (Totally Enclosed Non-Ventilated).

Frequently Asked Questions

What is the DAYTON DC Gearmotor used for?

The DAYTON DC Gearmotor is a parallel shaft permanent magnet DC gearmotor used in industrial automation, conveyor systems, and material handling. Its 6.5 RPM output and 500 in-lb torque suit low-speed, high-torque positioning and drive applications requiring precise speed control.

What are the specifications of the DAYTON gearmotor?

The DAYTON is a 90V DC, 1/15 hp permanent magnet DC gearmotor with a full load current of 0.84 A. It delivers 6.5 RPM and 500 in-lb maximum torque in a TENV (Totally Enclosed Non-Ventilated) enclosure. The parallel shaft design provides compact, inline power transmission.

Where to buy the DAYTON gearmotor worldwide?

3G Electric supplies the DAYTON DC gearmotor worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this parallel shaft gearmotor.

How to select a DC gearmotor like the DAYTON ?

To select a DC gearmotor like the DAYTON , match voltage (90V DC), torque (500 in-lb), speed (6.5 RPM), and horsepower (1/15 hp) to your load and duty cycle. Consider the TENV enclosure for dusty environments. 3G Electric can help interpret your application requirements.
