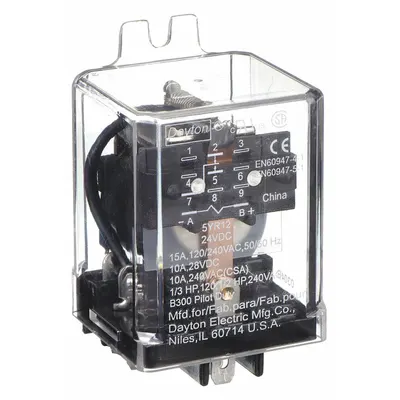

Dayton Flange Mount Relay: Surface (Side Flange) Mounted, 24V DC, SPDT
The DAYTON Flange Mount Relay is a surface (side flange) mounted relay with a 24V DC coil and SPDT contact configuration. It features a DC contact rating of 15A @ 28V, a side flange mounting style, and solder…
SKU 3G-OTH-37654
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The DAYTON Flange Mount Relay is a surface (side flange) mounted relay with a 24V DC coil and SPDT contact configuration. It features a DC contact rating of 15A @ 28V, a side flange mounting style, and solder terminal electrical connections. This relay has 5 pins/terminals and is identified by manufacturer part number 3G-OTH-37654.
Frequently Asked Questions
What is the DAYTON 5YR12 flange mount relay used for?
The DAYTON 5YR12 flange mount relay is used for switching DC loads up to 15A at 28V in industrial control panels, automation systems, and machinery. Its SPDT configuration and side flange mounting make it suitable for applications requiring reliable, space-efficient relay switching in harsh environments.
What are the specifications of the DAYTON 5YR12 relay?
The DAYTON 5YR12 relay has a 24V DC coil, SPDT contact configuration, and a DC contact rating of 15A at 28V. It features side flange mounting, solder terminal connections, and 5 pins/terminals. The manufacturer part number is 5YR12.
Where to buy the DAYTON 5YR12 relay worldwide?
3G Electric supplies the DAYTON 5YR12 relay to customers worldwide. We handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this relay.
How to install a DAYTON side flange mount relay?
Mount the DAYTON 5YR12 relay securely using the side flange holes, ensuring proper alignment. Connect wires to the solder terminals per the wiring diagram, observing polarity for the 24V DC coil. Verify the SPDT contacts are correctly wired for your load before energizing.
