Dayton IEC Thermal Overload Relay - IEC Thermal Overload Relays
DaytonIEC Thermal Overload Relays

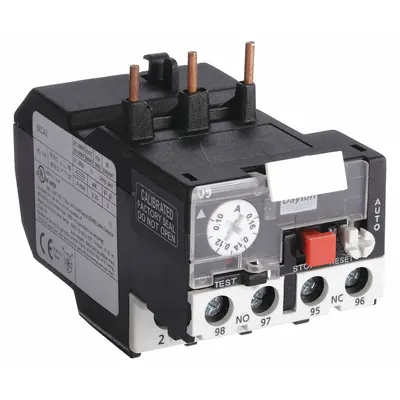

Dayton IEC Thermal Overload Relay

<p>The Dayton IEC Thermal Overload Relay (MPN: 6ECA3) is a compact 3-pole protection device designed for motors drawing 0.1 to 0.16 amps. It features integrated bimetallic elements, so no separate thermal units are…

SKU 3G-OTH-39079

Brand
Dayton
Item
IEC Thermal Overload Relay
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Delivery
Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to
Singapore

Technical Specifications

Dayton
Type
1NO/1NC, Phase Loss Sensitivity, 0.1 A – 0.16 A
Poles
3
Compatible Contactors
Dayton (9 to 18 Amp Models)
Auxiliary Contact Form
1NO/1NC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

<p>The Dayton IEC Thermal Overload Relay (MPN: 6ECA3) is a compact 3-pole protection device designed for motors drawing 0.1 to 0.16 amps. It features integrated bimetallic elements, so no separate thermal units are required. The relay offers a 1NO/1NC auxiliary contact configuration and phase loss sensitivity, ensuring reliable detection of phase failures.</p><p>This relay is compatible with Dayton contactors in the 9 to 18 amp range, making it a straightforward choice for panel builders and maintenance teams. For procurement in Singapore, request a quote in SGD and benefit from our fast delivery across Singapore and Southeast Asia. GST is handled for local buyers.</p>

Frequently Asked Questions

What is the current range and contact configuration of this Dayton overload relay?

The Dayton 6ECA3 has a current range of 0.1 to 0.16 A, with 3 poles and a 1NO/1NC auxiliary contact form. It also includes phase loss sensitivity.

Which contactors is this relay compatible with?

This relay is compatible with Dayton contactors in the 9 to 18 amp models. It does not require external thermal units as it has integrated bimetallic elements.
