Dayton Direct-Drive Right-Angle Speed Reducer - Direct-Drive Right-Angle Speed Reducers
DaytonDirect-Drive Right-Angle Speed Reducers

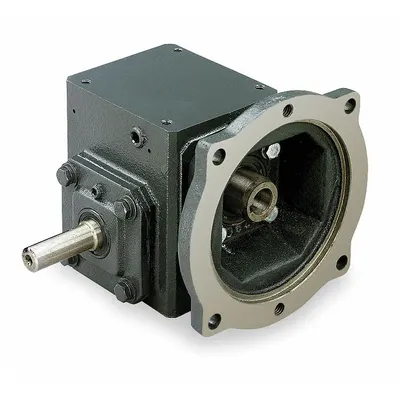

Dayton Direct-Drive Right-Angle Speed Reducer

The DAYTON Speed Reducer (SKU 3G-OTH-139642) is a direct-drive right-angle speed reducer with a 50:1 ratio, delivering 35 RPM output and a maximum input of 0.5 hp. It supports a maximum output torque of 581 in-lb and…

SKU 3G-OTH-139642

Brand
Dayton
Item
Direct-Drive Right-Angle Speed Reducer
Category
Direct-Drive Right-Angle Speed Reducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.

Technical Specifications

Dayton
Type
35 RPM, 581 in-lb Output Max, Keyed, 56C
Input Max
0.5 hp

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Speed Reducer (SKU 3G-OTH-139642) is a direct-drive right-angle speed reducer with a 50:1 ratio, delivering 35 RPM output and a maximum input of 0.5 hp. It supports a maximum output torque of 581 in-lb and features a keyed output shaft with a 56C frame. This unit is designed for mounting in any position except with the input motor shaft facing upward.

Frequently Asked Questions

What is the DAYTON speed reducer used for?

The DAYTON is a direct-drive right-angle speed reducer used to reduce motor speed and increase torque in industrial machinery. Common applications include conveyors, packaging equipment, and material handling systems where a 50:1 reduction ratio and 581 in-lb output torque are required.

What are the specifications of the DAYTON speed reducer?

The DAYTON has a 50:1 ratio, 35 RPM output, 0.5 hp maximum input, and 581 in-lb maximum output torque. It features a keyed output shaft, 56C frame, and can be mounted in any position except with the input motor shaft facing upward. The manufacturer part number is .

Where to buy the DAYTON speed reducer worldwide?

The DAYTON speed reducer is available to order through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact 3G Electric for pricing and lead time on this DAYTON speed reducer.

How to install the DAYTON speed reducer?

Mount the DAYTON in any position except with the input motor shaft facing upward. Align the 56C motor flange and keyed output shaft with the driven equipment. Use proper coupling alignment and ensure the reducer is securely bolted. Follow generic best practices for right-angle gearbox installation to avoid premature wear.
