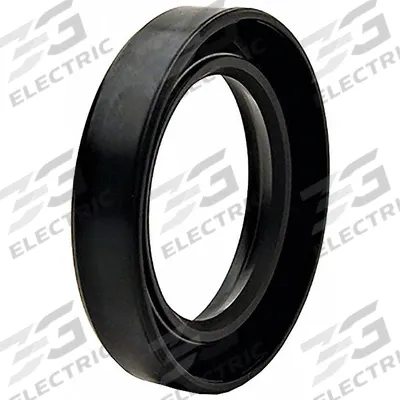

DDS Rotary Shaft Seal: 2 Lip w/Spring, TC, Fluoro, 4 in ID, 5 in OD, 0.5 in Wd - Dual-Lip Oil Seals with Rubber-Enclosed Cases for Rough Bores
DDSDual-Lip Oil Seals with Rubber-Enclosed Cases for Rough Bores

DDS Rotary Shaft Seal: 2 Lip w/Spring, TC, Fluoro, 4 in ID, 5 in OD, 0.5 in Wd

The DDS Rotary Shaft Seal: 2 Lip w/Spring is a dual-lip oil seal with a rubber-enclosed case for rough bores, model TC (MPN 101.612712.7TCV). It has a 4-inch inner diameter, 5-inch outer diameter, 0.5-inch width, and…

SKU 3G-OTH-154658

Brand
DDS
Item
Rotary Shaft Seal: 2 Lip w/Spring, TC, Fluoro, 4 in ID, 5 in OD, 0.5 in Wd
Category
Dual-Lip Oil Seals with Rubber-Enclosed Cases for Rough Bores
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

DDS
Manufacturer Part Number
101.612712.7TCV
Type
TC, Fluoro
OD
5 in
Wd
0.5 in
ID
4 in
Max Pressure
10 psi
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

DDS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DDS Rotary Shaft Seal: 2 Lip w/Spring is a dual-lip oil seal with a rubber-enclosed case for rough bores, model TC (MPN 101.612712.7TCV). It has a 4-inch inner diameter, 5-inch outer diameter, 0.5-inch width, and a maximum pressure rating of 10 psi. This inch-size seal is constructed with fluoro material and features a spring-loaded design.

Frequently Asked Questions

What is the DDS Rotary Shaft Seal: 2 Lip w/Spring used for?

This DDS dual-lip oil seal with a rubber-enclosed case is designed for rough bores in rotating shaft applications. It prevents fluid leakage and contaminant ingress in industrial equipment such as pumps, gearboxes, and motors, where a reliable seal is required under moderate pressure up to 10 psi.

What are the specifications of the DDS Rotary Shaft Seal: 2 Lip w/Spring?

The DDS Rotary Shaft Seal (MPN 101.612712.7TCV) has a 4-inch inner diameter, 5-inch outer diameter, and 0.5-inch width. It is an inch-size, TC-type seal with a spring-loaded dual-lip design, made of fluoro material, and rated for a maximum pressure of 10 psi.

Where to buy the DDS Rotary Shaft Seal: 2 Lip w/Spring worldwide?

3G Electric supplies the DDS Rotary Shaft Seal: 2 Lip w/Spring to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the DDS Rotary Shaft Seal: 2 Lip w/Spring?

To install this DDS seal, ensure the shaft and housing bore are clean and free of burrs. Use a seal driver or press to apply even pressure on the outer diameter, avoiding damage to the sealing lips. Lubricate the lips lightly before installation to prevent dry start.
