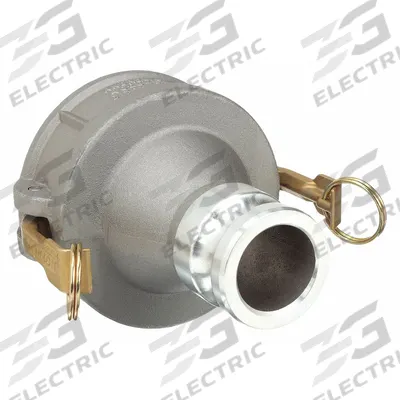

DIXON VALVE & COUPLING Cam and Groove Adapter: 100 psi Max. Working Pressure @ 70 F, 6 11/32 in Overall Lg - Type DA Aluminum Cam & Groove Fittings
DIXON VALVE & COUPLINGType DA Aluminum Cam & Groove Fittings

DIXON VALVE & COUPLING Cam and Groove Adapter: 100 psi Max. Working Pressure @ 70 F, 6 11/32 in Overall Lg

The DIXON VALVE & COUPLING Type DA Aluminum Cam & Groove Fittings are cam and groove adapters with a maximum working pressure of 100 psi at 70°F. This model (MPN 4020-DA-AL) features a Female Coupler x Male Adapter…

SKU 3G-OTH-451763

Brand
DIXON VALVE & COUPLING
Item
Cam and Groove Adapter: 100 psi Max. Working Pressure @ 70 F, 6 11/32 in Overall Lg
Category
Type DA Aluminum Cam & Groove Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

DIXON VALVE & COUPLING
Manufacturer Part Number
4020-DA-AL
Type
Working Pressure @ 70 F, Nitrile
Overall Lg
6 11/32 in
Fitting Type
Female Coupler x Male Adapter
Gasket Material
Nitrile
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

DIXON VALVE & COUPLING Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DIXON VALVE & COUPLING Type DA Aluminum Cam & Groove Fittings are cam and groove adapters with a maximum working pressure of 100 psi at 70°F. This model (MPN 4020-DA-AL) features a Female Coupler x Male Adapter fitting type and a Nitrile gasket material. It has an overall length of 6 11/32 inches.

Frequently Asked Questions

What is a DIXON VALVE & COUPLING Type DA cam and groove adapter used for?

This DIXON VALVE & COUPLING Type DA aluminum cam and groove adapter is used for quick-connect fluid transfer in industrial applications such as chemical processing, petroleum, and agriculture. It connects hoses and pipes with a secure, leak-resistant seal, rated for 100 psi at 70°F.

What are the specifications of the DIXON 4020-DA-AL cam and groove adapter?

The DIXON 4020-DA-AL is a Type DA aluminum cam and groove adapter with a Female Coupler x Male Adapter fitting type. It has a maximum working pressure of 100 psi at 70°F, an overall length of 6 11/32 in, and a Nitrile gasket material.

Where to buy DIXON cam and groove fittings worldwide?

3G Electric supplies DIXON cam and groove fittings worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver genuine DIXON VALVE & COUPLING products like the 4020-DA-AL to your facility, regardless of location.

How to select the right gasket material for a cam and groove adapter?

Select gasket material based on the fluid being transferred and temperature range. For this DIXON adapter, the Nitrile gasket suits petroleum-based fluids, oils, and water up to 100 psi at 70°F. For chemicals or higher temperatures, consult 3G Electric for alternative gasket options.

Used in

Common applications for DIXON VALVE & COUPLING
Chemical transfer — Dixon Type D forged brass cam and groove couplings for loading and unloading hoses in chemical processing plants.
Compressed air systems — Dixon Bowes Safety-Lock steel quick-connect plugs (e.g., N4M4-LS) for pneumatic tool connections in manufacturing facilities.
Marine fuel handling — Dixon Type C 316 stainless steel cam and groove couplings for fuel transfer hoses on vessels and docks.
Bulk material handling — Dixon Type AL stainless steel adapters (e.g., 150-AL-SS) for connecting hoses to flanged pipes in grain or powder transfer systems.
Water supply lines — Dixon Type F forged brass adapters for temporary water connections in construction or agricultural irrigation.
Dust protection — Dixon Type DC stainless steel dust caps for sealing unused cam and groove couplings in outdoor or washdown environments.
