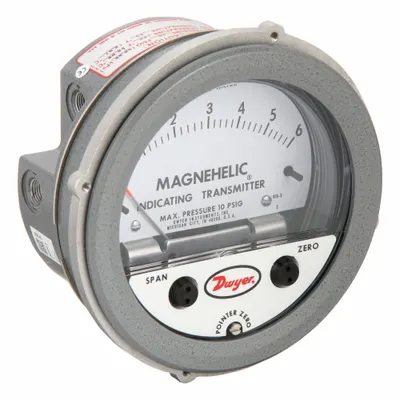

Dwyer 605-6 Differential Pressure Transmitter with Dial Display
The Dwyer Series 605 Indicating Transmitter (MPN 605-6) is a differential pressure transmitter with a dial display, offering a pressure range of 0 in wc to 6 in wc. It provides a 4 to 20mA output with an electrical…
SKU 3G-OTH-174088
Also listed as: 6056 · 605 6
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Compliance & shipping
- Hazardous material
- Not classified as hazardous
Need installation or engineering help?
Ask a question
Product Description
The Dwyer Series 605 Indicating Transmitter (MPN 605-6) is a differential pressure transmitter with a dial display, offering a pressure range of 0 in wc to 6 in wc. It provides a 4 to 20mA output with an electrical accuracy of ±0.5% and a mechanical accuracy of ±2%. The unit features a female NPT process connection and a terminal block for wiring.
Frequently Asked Questions
What is the Dwyer 605-6 indicating transmitter used for?
The Dwyer 605-6 is a differential pressure transmitter with a dial display, used in HVAC, cleanroom, and industrial applications to measure low air or gas pressure differences from 0 to 6 in wc. It provides a 4 to 20mA output for remote monitoring and local indication via the analog dial.
What are the specifications of the Dwyer 605-6?
The Dwyer 605-6 has a pressure range of 0 in wc to 6 in wc, electrical accuracy of ±0.5%, and mechanical accuracy of ±2%. It features a female NPT process connection, terminal block wiring, and a 4 to 20mA output. The dial display is analog, and the unit is not IP or NEMA rated.
Where to buy the Dwyer 605-6 worldwide?
You can source the Dwyer 605-6 from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this Dwyer differential pressure transmitter.
How to install the Dwyer 605-6 indicating transmitter?
Install the Dwyer 605-6 by connecting the female NPT process ports to the pressure lines using appropriate fittings. Wire the terminal block to a 4 to 20mA input device, observing polarity. Mount the unit in a clean, dry location away from vibration. Refer to the Dwyer manual for detailed wiring and zero-adjustment procedures.
