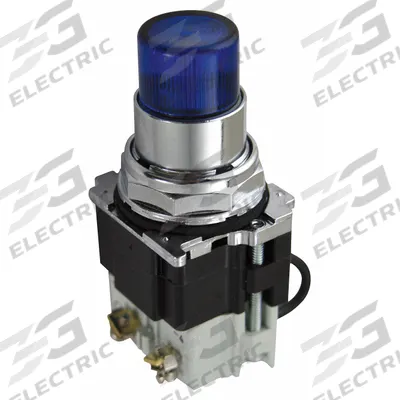

EATON Pilot Light: 30 mm Panel Mounting Size, Blue, LED - LED Pilot-Lights
EATONLED Pilot-Lights

EATON Pilot Light: 30 mm Panel Mounting Size, Blue, LED

The EATON Pilot Light is a 30 mm panel-mounting-size LED pilot light from the Series 10250T. This blue unit operates at a maximum supply voltage rating of 24 V AC/DC and includes a push-to-test feature. It is…

SKU 3G-OTH-35992

Brand
EATON
Item
Pilot Light: 30 mm Panel Mounting Size, Blue, LED
Category
LED Pilot-Lights
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
10250T297LLP24
Series
10250T
Type
Blue, LED
Includes Push-To-Test
Push-To-Test Included
AC/DC Max Volt Rating (Supply)
24 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Pilot Light is a 30 mm panel-mounting-size LED pilot light from the Series 10250T. This blue unit operates at a maximum supply voltage rating of 24 V AC/DC and includes a push-to-test feature. It is identified by manufacturer part number 10250T297LLP24.

Frequently Asked Questions

What is the EATON 10250T297LLP24 pilot light used for?

The EATON 10250T297LLP24 is a 30 mm panel-mounting-size LED pilot light used as a visual status indicator on industrial control panels, machinery, and automation equipment. Its blue lens and push-to-test feature allow operators to verify circuit integrity quickly in manufacturing, processing, and utility applications.

What are the specifications of the EATON 10250T297LLP24 pilot light?

This EATON pilot light is from the Series 10250T, with a 30 mm panel mounting size. It features a blue LED, operates at a maximum supply voltage of 24 V AC/DC, and includes a push-to-test function. The manufacturer part number is 10250T297LLP24.

Where to buy the EATON 10250T297LLP24 pilot light worldwide?

3G Electric supplies the EATON 10250T297LLP24 pilot light worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this EATON component to any country.

How to install the EATON 10250T297LLP24 pilot light?

Install the EATON 10250T297LLP24 by mounting it through a 30 mm panel cutout and securing it with the provided locknut. Connect the supply wires to the terminals, ensuring the voltage does not exceed 24 V AC/DC. Use the push-to-test button to verify operation after installation. Follow standard industrial wiring practices.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas
