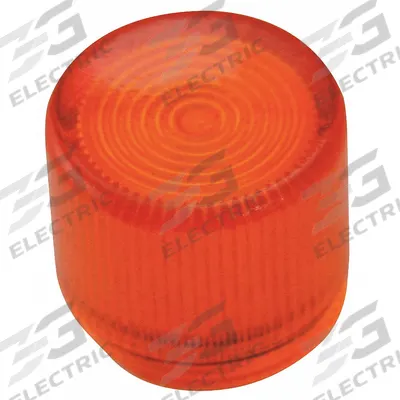

EATON Push Button Cap: 30 mm Panel Size, Illuminated, Non-Metallic - Heads for Push Buttons
EATONHeads for Push Buttons

EATON Push Button Cap: 30 mm Panel Size, Illuminated, Non-Metallic

The EATON Push Button Cap (MPN 10250TC43) is a non-metallic, amber illuminated head for push buttons, featuring a 30 mm panel size and a plastic construction. It attaches via a screw-on mechanism and is compatible…

SKU 3G-OTH-31331

Brand
EATON
Item
Push Button Cap: 30 mm Panel Size, Illuminated, Non-Metallic
Category
Heads for Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
10250TC43
Head Material
Plastic
Head Attachment Type
Screw-On
Compatible with Series
10250T
Compatible Operator Illumination
Illuminated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Push Button Cap (MPN 10250TC43) is a non-metallic, amber illuminated head for push buttons, featuring a 30 mm panel size and a plastic construction. It attaches via a screw-on mechanism and is compatible with the EATON 10250T series of illuminated operators.

Frequently Asked Questions

What is the EATON 10250TC43 push button cap used for?

The EATON 10250TC43 is a non-metallic, amber illuminated cap for 30 mm panel-mount push buttons. It provides visual status indication in industrial control panels, machinery, and automation systems. The screw-on attachment secures it to compatible EATON 10250T series illuminated operators.

What are the specifications of the EATON 10250TC43 push button cap?

The EATON 10250TC43 is a plastic, amber illuminated push button cap with a 30 mm panel size. It attaches via a screw-on mechanism and is compatible with the EATON 10250T series of illuminated operators. The head material is non-metallic plastic, and it is designed for illuminated operation.

Where to buy the EATON 10250TC43 push button cap worldwide?

3G Electric supplies the EATON 10250TC43 push button cap to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this genuine EATON component.

How to install the EATON 10250TC43 push button cap?

To install the EATON 10250TC43, screw the cap onto a compatible EATON 10250T series illuminated operator until hand-tight. Ensure the operator is properly mounted in a 30 mm panel cutout. Do not overtighten, as the plastic head can crack. Follow standard industrial control panel wiring practices for the operator.
