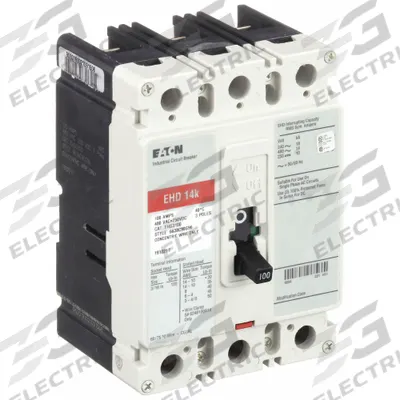

EATON Molded Case Circuit Breaker: 100 A Amps, 18kA at 240V AC, Fixed, ABC, Load Side Lug
The EATON EHD3100 is an FD-Frame Molded Case Circuit Breaker rated for 100 A with an interrupting capacity of 18kA at 240V AC. It features a fixed trip unit, ABC trip curve, and load-side lug terminations. This…
SKU 3G-OTH-151005
Need installation or engineering help?
Ask a question
Product Description
The EATON EHD3100 is an FD-Frame Molded Case Circuit Breaker rated for 100 A with an interrupting capacity of 18kA at 240V AC. It features a fixed trip unit, ABC trip curve, and load-side lug terminations. This EHD-series breaker is designed for industrial electrical distribution applications.
Frequently Asked Questions
What is the EATON EHD3100 molded case circuit breaker used for?
The EATON EHD3100 is used for overcurrent protection in industrial electrical distribution systems. It safeguards branch circuits and equipment from short circuits and overloads, with a 100 A rating and 18kA interrupting capacity at 240V AC, making it suitable for commercial and light industrial applications.
What are the specifications of the EATON EHD3100 circuit breaker?
The EATON EHD3100 is an FD-frame molded case circuit breaker rated 100 A with an interrupting capacity of 18kA at 240V AC. It features a fixed trip unit, ABC trip curve, and load-side lug terminations. The EHD-series design ensures reliable performance in standard industrial environments.
Where to buy the EATON EHD3100 circuit breaker worldwide?
You can source the EATON EHD3100 circuit breaker through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EHD-series breaker.
How to select the right EATON molded case circuit breaker for your application?
To select the right EATON molded case circuit breaker, match the continuous current rating (e.g., 100 A) and interrupting capacity (e.g., 18kA at 240V AC) to your system's fault current and load requirements. Verify the trip curve (ABC) and termination type (load-side lug) align with your panel design.
Used in
Common applications for EATONEATON Products
3G Electric supplies EATON fd-frame eaton molded case circuit breakers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
