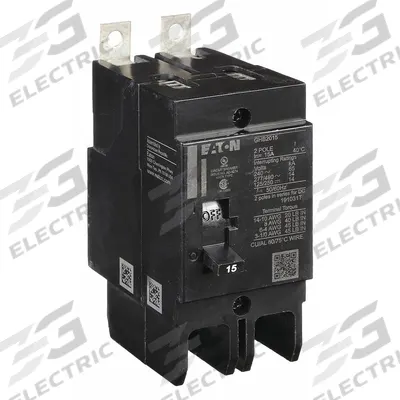

EATON Miniature Circuit Breaker: 15 A, 277/480V AC, Single Phase, 14kA at 277/480V AC - GHB Series, Bolt-On Eaton Cutler-Hammer Miniature Circuit Breakers
EATONGHB Series, Bolt-On Eaton Cutler-Hammer Miniature Circuit Breakers

EATON Miniature Circuit Breaker: 15 A, 277/480V AC, Single Phase, 14kA at 277/480V AC

The EATON GHB2015 is a 15 A, single-phase, 2-pole miniature circuit breaker from the GHB Series, designed for bolt-on mounting in Eaton Cutler-Hammer Powerline Panelboards. It is rated at 277/480V AC with a 14kA…

SKU 3G-OTH-127606

Brand
EATON
Item
Miniature Circuit Breaker: 15 A, 277/480V AC, Single Phase, 14kA at 277/480V AC
Category
GHB Series, Bolt-On Eaton Cutler-Hammer Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
GHB2015
Type
Single Phase, 14kA at 277/480V AC, Std
AC
277/480V
Poles
2
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON GHB2015 is a 15 A, single-phase, 2-pole miniature circuit breaker from the GHB Series, designed for bolt-on mounting in Eaton Cutler-Hammer Powerline Panelboards. It is rated at 277/480V AC with a 14kA interrupting capacity at that voltage, and features a standard trip characteristic.

Frequently Asked Questions

What is the EATON GHB2015 miniature circuit breaker used for?

The EATON GHB2015 is a 15 A, 2-pole miniature circuit breaker used for overcurrent protection in commercial and industrial power distribution. It mounts in Eaton Cutler-Hammer Powerline Panelboards and is rated for single-phase 277/480V AC systems with a 14kA interrupting capacity.

What are the specifications of the EATON GHB2015 circuit breaker?

The EATON GHB2015 is a 15 A, single-phase, 2-pole miniature circuit breaker rated at 277/480V AC. It has a 14kA interrupting capacity at 277/480V AC, a standard trip characteristic, and bolt-on mounting for Eaton Powerline Panelboards. It is part of the GHB Series from EATON.

Where to buy the EATON GHB2015 circuit breaker worldwide?

3G Electric supplies the EATON GHB2015 miniature circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this Eaton GHB Series breaker.

How to install the EATON GHB2015 circuit breaker?

Install the EATON GHB2015 by bolting it into an Eaton Cutler-Hammer Powerline Panelboard. Ensure the panel is de-energized, then torque the bolt-on connections to manufacturer specifications. Verify the 15 A rating and 277/480V AC system compatibility before energizing. Follow all local electrical codes.
