EATON Auxiliary Contact: 2NO/2NC, 16 A Max Current (AC), Front Mount - Eaton Auxiliary Contacts
EATONEaton Auxiliary Contacts

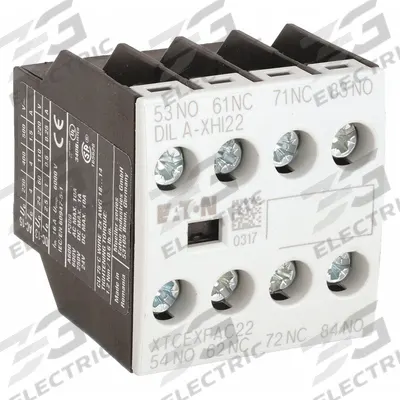

EATON Auxiliary Contact: 2NO/2NC, 16 A Max Current (AC), Front Mount

The EATON Auxiliary Contact (MPN XTCEXFAC22) is a front-mounted accessory designed for use with EATON XTRE Control Relays. It features a 2NO/2NC contact configuration and supports a maximum current of 16 A (AC). This…

SKU 3G-OTH-41388

Brand
EATON
Item
Auxiliary Contact: 2NO/2NC, 16 A Max Current
Category
Eaton Auxiliary Contacts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTCEXFAC22
Type
Front Mount, Front-Mounted
Max Current (AC)
16 A
Compatible with Series
XTRE Control Relays
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Auxiliary Contact (MPN XTCEXFAC22) is a front-mounted accessory designed for use with EATON XTRE Control Relays. It features a 2NO/2NC contact configuration and supports a maximum current of 16 A (AC). This component provides additional switching capacity for control circuits.

Frequently Asked Questions

What is the EATON XTCEXFAC22 auxiliary contact used for?

The EATON XTCEXFAC22 auxiliary contact is used to add extra switching capacity to EATON XTRE control relays. It provides 2 normally open and 2 normally closed contacts for monitoring or interlocking in industrial control panels, motor starters, and automation systems.

What are the specifications of the EATON XTCEXFAC22 auxiliary contact?

The EATON XTCEXFAC22 is a front-mounted auxiliary contact with a 2NO/2NC configuration. It supports a maximum current of 16 A (AC) and is compatible with EATON XTRE control relays. The MPN is XTCEXFAC22.

Where to buy the EATON XTCEXFAC22 auxiliary contact worldwide?

You can source the EATON XTCEXFAC22 auxiliary contact from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times.

How to install the EATON XTCEXFAC22 auxiliary contact?

To install the EATON XTCEXFAC22, mount it to the front of a compatible EATON XTRE control relay. Ensure the power is off, align the contact block with the relay mounting slots, and snap it into place. Wire the 2NO/2NC terminals per your control circuit diagram.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON eaton auxiliary contacts. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
