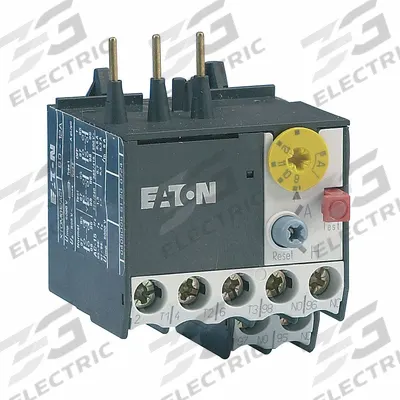

EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Thermal Overload Relays
EATONIEC Thermal Overload Relays

EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The EATON Overload Relay: Thermal Protection (SKU 4WXD7, MPN XTOM004AC1) is an IEC thermal overload relay with a Frame Size A, designed for use with EATON XT Mini Contactors of the same frame size. It features…

SKU 3G-OTH-39477

Brand
EATON
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTOM004AC1
Type
1NO/1NC, Phase Loss Sensitivity, Frame Size A
Poles
3
Frame Size
A
Compatible Contactors
Frame Size A
Auxiliary Contact Form
1NO/1NC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Compatible Contactor Series
XT Mini Contactors
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Overload Relay: Thermal Protection (SKU 4WXD7, MPN XTOM004AC1) is an IEC thermal overload relay with a Frame Size A, designed for use with EATON XT Mini Contactors of the same frame size. It features 1NO/1NC auxiliary contacts, phase loss sensitivity, and integrated bimetallic elements, eliminating the need for separate thermal units.
