EATON Air Conditioning Disconnect Switch: Non-Fusible, 60 A, Single Phase, 240V AC - Non-Fusible Disconnect Switches with GFCI Receptacles
EATONNon-Fusible Disconnect Switches with GFCI Receptacles

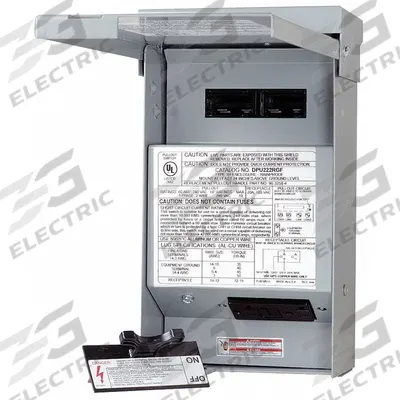

EATON Air Conditioning Disconnect Switch: Non-Fusible, 60 A, Single Phase, 240V AC

The EATON Air Conditioning Disconnect Switch is a non-fusible disconnect switch with GFCI receptacles, featuring a pull-out switch design. It is rated for 60 A, single phase, 240V AC, and constructed with galvanized…

SKU 3G-OTH-26655

Brand
EATON
Item
Air Conditioning Disconnect Switch: Non-Fusible, 60 A, Single Phase, 240V AC
Category
Non-Fusible Disconnect Switches with GFCI Receptacles
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
DPU222RGF20
Type
60 A, Single Phase, Galvanized Steel
AC
240V
Switch Design
Pull-out
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Air Conditioning Disconnect Switch is a non-fusible disconnect switch with GFCI receptacles, featuring a pull-out switch design. It is rated for 60 A, single phase, 240V AC, and constructed with galvanized steel (MPN DPU222RGF20).

Frequently Asked Questions

What is the EATON DPU222RGF20 air conditioning disconnect switch used for?

The EATON DPU222RGF20 is a non-fusible disconnect switch with a built-in GFCI receptacle, designed to safely isolate power to air conditioning units during maintenance or emergencies. It is rated for 60 A, single phase, 240V AC, and features a pull-out switch design in a galvanized steel enclosure.

What are the specifications of the EATON DPU222RGF20 disconnect switch?

The EATON DPU222RGF20 is a non-fusible disconnect switch rated 60 A, single phase, 240V AC. It has a pull-out switch design, includes a GFCI receptacle, and is constructed from galvanized steel. The manufacturer part number is DPU222RGF20.

Where to buy the EATON DPU222RGF20 disconnect switch worldwide?

3G Electric supplies the EATON DPU222RGF20 disconnect switch to customers worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver this non-fusible disconnect switch with GFCI receptacle to your facility, regardless of location.

How to install the EATON DPU222RGF20 air conditioning disconnect switch?

Installation of the EATON DPU222RGF20 should follow local electrical codes and the manufacturer's instructions. Typically, mount the galvanized steel enclosure, connect line-side power to the pull-out switch terminals, and wire the load side to the AC unit. The GFCI receptacle requires proper grounding and testing after installation.
