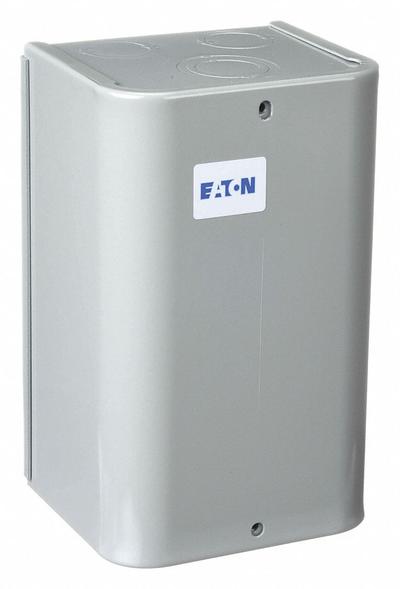

EATON Definite Purpose Contactor: 3 Poles, 24V AC, 15 A, Non-Reversing - Enclosed Non-Reversing Definite Purpose Contactors
EATONEnclosed Non-Reversing Definite Purpose Contactors

EATON Definite Purpose Contactor: 3 Poles, 24V AC, 15 A, Non-Reversing

The EATON C25 Series Definite Purpose Contactor (MPN C25DGD315T) is a three-pole, enclosed non-reversing contactor with a 24V AC coil and a 15 A rating. It features a Frame Size D, 3NO main pole contact form…

SKU 3G-OTH-38896

Brand
EATON
Item
Definite Purpose Contactor: 3 Poles, 24V AC, 15 A, Non-Reversing
Category
Enclosed Non-Reversing Definite Purpose Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
C25DGD315T
Series
C25 Series
Type
15 A, Non-Reversing, Compact Contactor Frame Size
AC
24V
Phase
Three
Frame Size
D
Coil Voltage
24V AC
Contactor Style
HVACR Definite Purpose Contactor
Main Pole Contact Form
3NO
Maximum Voltage Rating
690V AC
Terminal Connection Type
Quick-Disconnect Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON C25 Series Definite Purpose Contactor (MPN C25DGD315T) is a three-pole, enclosed non-reversing contactor with a 24V AC coil and a 15 A rating. It features a Frame Size D, 3NO main pole contact form, quick-disconnect terminals, and a maximum voltage rating of 690V AC. This HVACR definite purpose contactor is designed for three-phase applications.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON enclosed non-reversing definite purpose contactors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
