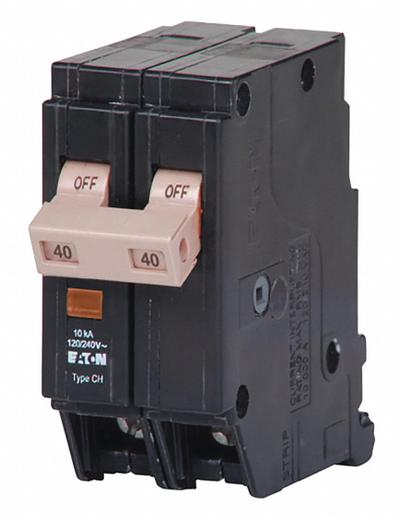

EATON Circuit Breaker: 40 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - CH Series
EATONCH Series

EATON Circuit Breaker: 40 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The EATON CH Series Circuit Breaker (MPN CHF240) is a 40 A, single-phase, 120/240V AC unit with a 10kA interrupting rating at 120/240V AC. It is designed for use in Type CH Loadcenters and features a standard trip…

SKU 3G-OTH-129495

Brand
EATON
Item
Circuit Breaker: 40 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
CH Series
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
CHF240
Type
Single Phase, 10kA at 120/240V AC, Type CH Loadcenters
AC
120/240V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON CH Series Circuit Breaker (MPN CHF240) is a 40 A, single-phase, 120/240V AC unit with a 10kA interrupting rating at 120/240V AC. It is designed for use in Type CH Loadcenters and features a standard trip characteristic.
