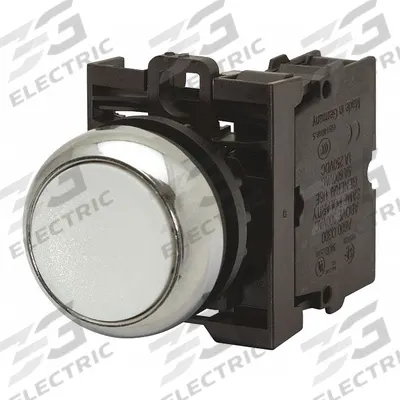

EATON Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm - Illuminated Flush-Mount Push Buttons
EATONIlluminated Flush-Mount Push Buttons

EATON Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm

The EATON Illuminated Push Button is an illuminated flush-mount push button from the M22 series, featuring a momentary action and a non-metallic construction. This 22 mm component is designed for industrial control…

SKU 3G-OTH-33360

Brand
EATON
Item
Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm
Category
Illuminated Flush-Mount Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
M22-DL-W-K10-W
Series
M22
Type
Flush Profile, Non-Metallic, 22 mm, 1NO
Action
Momentary
Push Button Material Type
Non-Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Illuminated Push Button is an illuminated flush-mount push button from the M22 series, featuring a momentary action and a non-metallic construction. This 22 mm component is designed for industrial control panel applications, offering a flush profile with a 1NO contact configuration.

Frequently Asked Questions

What is the EATON illuminated push button used for?

The EATON illuminated push button is used as a momentary control switch in industrial control panels. Its flush profile and non-metallic construction suit environments requiring durable, corrosion-resistant operation. Common applications include machine start/stop stations, conveyor controls, and process automation where visual status indication is needed.

What are the specifications of the EATON M22-DL-W-K10-W?

The EATON M22-DL-W-K10-W is a momentary illuminated push button from the M22 series. It features a flush profile, non-metallic construction, 22 mm mounting diameter, and a 1NO contact configuration. The part number is M22-DL-W-K10-W, and the push button material is non-metallic.

Where to buy the EATON M22-DL-W-K10-W worldwide?

You can source the EATON M22-DL-W-K10-W through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply this component to control panel builders and maintenance teams internationally.

How to install the EATON M22 illuminated push button?

Install the EATON M22 illuminated push button by mounting it into a 22 mm panel cutout. Secure the unit with the provided locking ring, then connect the 1NO contact to your control circuit per the wiring diagram. Ensure the supply voltage matches the illumination rating. Follow standard industrial panel installation practices for safety.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas
