EATON Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm - Illuminated Flush-Mount Push Buttons
EATONIlluminated Flush-Mount Push Buttons

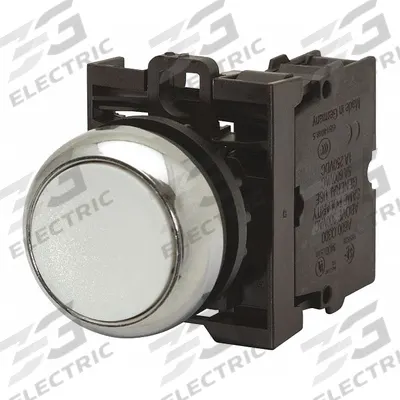

EATON Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm

The EATON Illuminated Push Button is an illuminated flush-mount push button from the M22 series, featuring a maintained action and a non-metallic construction. This 22 mm component is designed for industrial control…

SKU 3G-OTH-33395

Brand
EATON
Item
Illuminated Push Button: Illuminated, Flush Profile, Non-Metallic, 22 mm
Category
Illuminated Flush-Mount Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
M22-DRL-W-K20-230W
Series
M22
Type
Flush Profile, Non-Metallic, 22 mm, 2NO
Action
Maintained
Push Button Material Type
Non-Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Illuminated Push Button is an illuminated flush-mount push button from the M22 series, featuring a maintained action and a non-metallic construction. This 22 mm component is designed for industrial control panel applications, offering a flush profile with 2NO contacts.

Frequently Asked Questions

What is the EATON illuminated push button used for?

The EATON illuminated push button is used in industrial control panels for machine start/stop or status indication. Its flush profile and non-metallic construction suit environments requiring corrosion resistance. The maintained action holds the circuit state until manually changed, common in manufacturing and process automation.

What are the specifications of the EATON M22-DRL-W-K20-230W?

This EATON M22 series illuminated push button has a 22 mm mounting hole, maintained action, and 2NO contacts. It features a non-metallic flush profile and is rated for 230 VAC. The part number is M22-DRL-W-K20-230W, and it is designed for panel-mount industrial control applications.

Where to buy the EATON M22-DRL-W-K20-230W worldwide?

3G Electric supplies the EATON M22-DRL-W-K20-230W worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this component to any country.

How to install the EATON illuminated push button?

Install the EATON illuminated push button by mounting it into a 22 mm panel cutout. Secure the non-metallic body with the provided locking ring. Wire the 2NO contacts according to your control circuit, ensuring the supply voltage matches the 230 VAC rating. Follow standard panel wiring practices for safety.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
