EATON Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 1, 27 A - Non-Reversing NEMA Contactors
EATONNon-Reversing NEMA Contactors

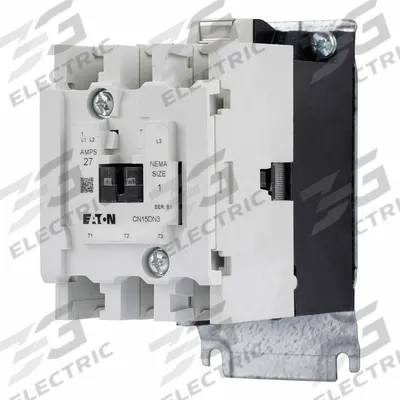

EATON Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 1, 27 A

The EATON NEMA Magnetic Contactor is a non-reversing, 3-pole device rated NEMA Size 1, 27 A, 480V AC (MPN CN15DN3CB). It is designed for reliable motor and load switching in industrial control applications.

SKU 3G-OTH-40039

Brand
EATON
Item
Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 1, 27 A
Category
Non-Reversing NEMA Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
CN15DN3CB
Type
NEMA Size 1, 27 A
AC
480V
Poles
3
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON NEMA Magnetic Contactor is a non-reversing, 3-pole device rated NEMA Size 1, 27 A, 480V AC (MPN CN15DN3CB). It is designed for reliable motor and load switching in industrial control applications.

Frequently Asked Questions

What is the EATON CN15DN3CB NEMA magnetic contactor used for?

The EATON CN15DN3CB is a non-reversing NEMA magnetic contactor used to switch motor loads and other inductive circuits in industrial automation, HVAC, and pump control applications. It is designed for reliable on/off control of three-phase motors up to 27 A at 480V AC.

What are the specifications of the EATON CN15DN3CB contactor?

The EATON CN15DN3CB is a NEMA Size 1, non-reversing, three-pole magnetic contactor rated for 27 A continuous current at 480V AC. It is manufactured by EATON under part number CN15DN3CB and is suitable for general-purpose motor switching in industrial environments.

Where to buy the EATON CN15DN3CB contactor worldwide?

You can source the EATON CN15DN3CB contactor through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EATON part.

How to select the correct NEMA contactor size for a motor?

Select a NEMA contactor size based on the motor's full-load current and voltage. For a 27 A, 480V AC motor, a NEMA Size 1 contactor like the EATON CN15DN3CB is appropriate. Always verify the contactor's continuous current rating exceeds the motor's nameplate current and that coil voltage matches the control circuit.
