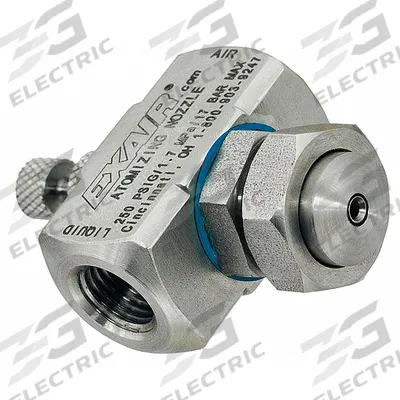

EXAIR Atomizing Spray Nozzle: Siphon, 0.7 scfm, Round, 1/4 in FNPT, FNPT - Siphon Fed Air-Atomizing Spray Nozzles
EXAIRSiphon Fed Air-Atomizing Spray Nozzles

EXAIR Atomizing Spray Nozzle: Siphon, 0.7 scfm, Round, 1/4 in FNPT, FNPT

The EXAIR Atomizing Spray Nozzle is a siphon-fed, air-atomizing nozzle with a 0.7 scfm flow rate and a round spray pattern at 15 inches. It features a 1/4 in FNPT connection, internal mix type, and is constructed…

SKU 3G-OTH-465598

Brand
EXAIR
Item
Atomizing Spray Nozzle: Siphon, 0.7 scfm, Round, 1/4 in FNPT, FNPT
Category
Siphon Fed Air-Atomizing Spray Nozzles
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EXAIR
Manufacturer Part Number
SR1020SS
Type
0.7 scfm, Round, FNPT, Atomizing Nozzle
Material
Stainless Steel
FNPT
1/4 in
Mix Type
Internal
Flow Rate
0.7 scfm
Spray Pattern @ 15 In.
Round
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EXAIR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EXAIR Atomizing Spray Nozzle is a siphon-fed, air-atomizing nozzle with a 0.7 scfm flow rate and a round spray pattern at 15 inches. It features a 1/4 in FNPT connection, internal mix type, and is constructed from stainless steel (MPN SR1020SS).

Frequently Asked Questions

What is the EXAIR Atomizing Spray Nozzle used for?

The EXAIR Atomizing Spray Nozzle is used for precision liquid atomization in industrial coating, humidification, and cooling applications. Its siphon-feed design draws liquid without a pump, making it ideal for low-pressure fluid delivery in manufacturing and process environments.

What are the specifications of the EXAIR SR1020SS nozzle?

The EXAIR SR1020SS is a stainless steel siphon-fed atomizing nozzle with a 0.7 scfm flow rate, 1/4 in FNPT connection, internal mix type, and a round spray pattern at 15 inches. It is designed for reliable, fine-mist atomization in demanding industrial settings.

Where to buy the EXAIR Atomizing Spray Nozzle worldwide?

3G Electric supplies the EXAIR Atomizing Spray Nozzle SR1020SS to customers worldwide. We handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this stainless steel, siphon-fed atomizing nozzle.

How to install the EXAIR siphon-fed atomizing nozzle?

Install the EXAIR SR1020SS by connecting the 1/4 in FNPT inlet to compressed air and the siphon tube to the liquid source. Ensure the internal mix chamber is clean and the spray pattern is directed at the target. Adjust air pressure to achieve desired atomization.

Used in

Common applications for EXAIR
Automotive assembly — EXAIR air knives (e.g., model 112048) for drying painted surfaces after washing
Electronics manufacturing — EXAIR vortex tubes (e.g., MPN 3204) for cooling control cabinets in high-heat environments
Food processing — EXAIR air guns (e.g., MPN 1928-6) for blow-off cleaning of conveyor belts and packaging
Packaging lines — EXAIR stay-set hoses (e.g., MPN 9224) for directing compressed air to remove debris from containers
Metalworking — EXAIR pistol-grip air guns (e.g., MPN 1690-6-CS) with safety shields for chip removal from machining centers
Pharmaceutical production — EXAIR anti-static air knives (e.g., model 112048) for neutralizing static on tablet packaging films
