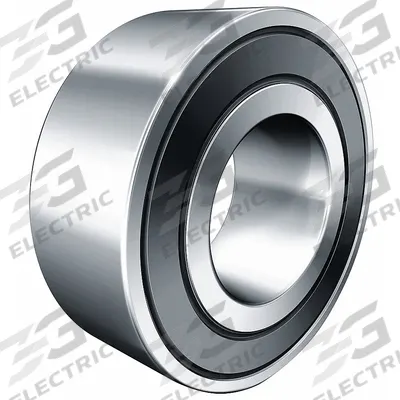

FAG BEARINGS Angular Contact Ball Bearing: 3309/5309, 2 Rows, 30°, Dbl Sealed, ABEC 3 - Double-Row Angular Contact Bearings
FAG BEARINGSDouble-Row Angular Contact Bearings

FAG BEARINGS Angular Contact Ball Bearing: 3309/5309, 2 Rows, 30°, Dbl Sealed, ABEC 3

The FAG BEARINGS Angular Contact Ball Bearing, model 3309/5309 (MPN 3309-BD-XL-2HRS-C3), is a double-row angular contact bearing with a 30° contact angle, double-sealed, and rated ABEC 3. It features a steel cage and…

SKU 3G-OTH-109642

Brand
FAG BEARINGS
Item
Angular Contact Ball Bearing: 3309/5309, 2 Rows, 30°, Dbl Sealed, ABEC 3
Category
Double-Row Angular Contact Bearings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

FAG BEARINGS
Manufacturer Part Number
3309-BD-XL-2HRS-C3
Type
30°, Dbl Sealed, ABEC 3, Steel Cage
Rows
2
Bearing Type
Single Bearing
Contact Bearing Type
Angular Contact
Matched Bearing Type
Not Matched/Single Bearing
System of Measurement
Metric
Bearing Industry Number
3309/5309
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

FAG BEARINGS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The FAG BEARINGS Angular Contact Ball Bearing, model 3309/5309 (MPN 3309-BD-XL-2HRS-C3), is a double-row angular contact bearing with a 30° contact angle, double-sealed, and rated ABEC 3. It features a steel cage and is supplied as a single bearing (not matched). This metric bearing is designed for applications requiring axial and radial load support.

Frequently Asked Questions

What is the FAG 3309-BD-XL-2HRS-C3 angular contact ball bearing used for?

This double-row angular contact ball bearing supports combined axial and radial loads in industrial machinery such as pumps, compressors, and gearboxes. Its 30° contact angle and double-sealed design make it suitable for applications requiring high rigidity and contamination protection.

What are the specifications of the FAG 3309/5309 bearing?

The FAG 3309-BD-XL-2HRS-C3 is a metric double-row angular contact bearing with a 30° contact angle, double-sealed, ABEC 3 precision, and a steel cage. It is supplied as a single, not matched, bearing with industry number 3309/5309.

Where to buy FAG angular contact bearings worldwide?

3G Electric supplies FAG angular contact bearings worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on the FAG 3309-BD-XL-2HRS-C3 bearing.

How to select the correct FAG double-row angular contact bearing?

Select based on required load capacity, speed, and operating conditions. The FAG 3309-BD-XL-2HRS-C3 offers a 30° contact angle for axial loads, double seals for contamination resistance, and ABEC 3 precision. Verify shaft and housing fits per FAG guidelines for optimal performance.

Used in

Common applications for FAG BEARINGS
Electric motor repair — FAG double-row angular contact bearings (3306-BD-XL) for rotor support in medium-voltage motors
Machine tool spindles — FAG high-precision angular contact bearings (7210-B-XL-TVP-UA) for tandem duplex mounting in grinding spindles
Industrial pump assemblies — FAG self-aligning ball bearings (2203-2RS-TVH) for accommodating shaft misalignment in centrifugal pumps
Gearbox maintenance — FAG cylindrical roller bearings (NU207-E-XL-M1-C3) for high radial load and axial displacement in helical gear units
Compressor rebuilds — FAG angular contact bearings (7317-B-XL-TVP-UA) for thrust load handling in reciprocating compressors
Conveyor systems — FAG double-row angular contact bearings (3207-BD-XL-2Z) for sealed operation in belt conveyor idler rolls
