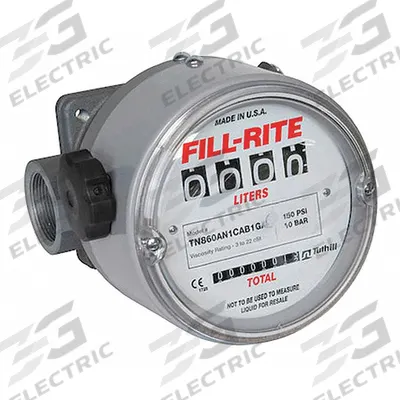

FILL-RITE Mechanical Flowmeter: 4-Digit Mechanical Fuel Transfer Meter, E100/E85/Solvents - Nutating Disc Totalizers for Fuels
FILL-RITENutating Disc Totalizers for Fuels

FILL-RITE Mechanical Flowmeter: 4-Digit Mechanical Fuel Transfer Meter, E100/E85/Solvents

The FILL-RITE Mechanical Flowmeter is a 4-digit mechanical fuel transfer meter and nutating disc totalizer designed for use with E100, E85, and solvents. It features a mechanical display, Buna-N seal and O-ring…

SKU 3G-OTH-89166

Brand
FILL-RITE
Item
Mechanical Flowmeter: 4-Digit Mechanical Fuel Transfer Meter, E100/E85/Solvents
Category
Nutating Disc Totalizers for Fuels
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

FILL-RITE
Manufacturer Part Number
TN860AN1CAB2LBC
Type
E100/E85/Solvents, Aluminum
Accuracy
+/-2%
Output Type
Standard Frequency Pulse
Display Type
Mechanical
Seal Material
Buna-N
O-Ring Material
Buna-N
Unit Of Measure
Liters
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

FILL-RITE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The FILL-RITE Mechanical Flowmeter is a 4-digit mechanical fuel transfer meter and nutating disc totalizer designed for use with E100, E85, and solvents. It features a mechanical display, Buna-N seal and O-ring materials, and an accuracy of +/-2%. The meter provides a standard frequency pulse output and measures in liters.

Frequently Asked Questions

What is the FILL-RITE Mechanical Flowmeter used for?

The FILL-RITE Mechanical Flowmeter is a 4-digit nutating disc totalizer designed for measuring fuel transfer volumes of E100, E85, and solvents. It is commonly used in industrial fueling, fleet maintenance, and chemical handling applications where a mechanical display and pulse output are required.

What are the specifications of the FILL-RITE Mechanical Flowmeter?

The FILL-RITE Mechanical Flowmeter (MPN TN860AN1CAB2LBC) features a mechanical display, +/-2% accuracy, Buna-N seals and O-rings, and a standard frequency pulse output. It measures in liters and is built with an aluminum body for compatibility with E100, E85, and solvents.

Where to buy the FILL-RITE Mechanical Flowmeter worldwide?

You can source the FILL-RITE Mechanical Flowmeter through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this item.

How to install the FILL-RITE Mechanical Flowmeter?

Install the FILL-RITE Mechanical Flowmeter by connecting it inline with the fuel transfer hose, ensuring flow direction matches the arrow on the body. Use compatible thread sealant on connections and verify the Buna-N seals are properly seated. After installation, test for leaks at operating pressure before use.
