GE Molded Case Circuit Breaker: 30 A Amps, 35kA at 277/480V AC, Fixed, Lug - TEY-Frame GE Molded Case Circuit Breakers
GETEY-Frame GE Molded Case Circuit Breakers

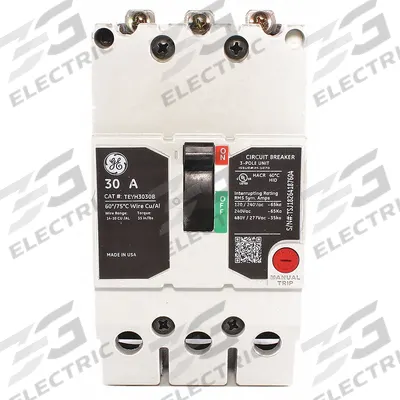

GE Molded Case Circuit Breaker: 30 A Amps, 35kA at 277/480V AC, Fixed, Lug

The GE TEY-Frame Molded Case Circuit Breaker (SKU 32HZ41, MPN TEYH3030B) is a 30 A, 35kA at 277/480V AC rated device from the TEY series. It features a fixed instantaneous trip, lug terminal connections, and ABC…

SKU 3G-OTH-23847

Brand
GE
Item
Molded Case Circuit Breaker: 30 A Amps, 35kA at 277/480V AC, Fixed, Lug
Category
TEY-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
TEYH3030B
Series
TEY
Type
35kA at 277/480V AC, Fixed, Lug, ABC, Std
Max. AIR Rating
35kA at 277/480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE TEY-Frame Molded Case Circuit Breaker (SKU 32HZ41, MPN TEYH3030B) is a 30 A, 35kA at 277/480V AC rated device from the TEY series. It features a fixed instantaneous trip, lug terminal connections, and ABC phase connection.

Frequently Asked Questions

What is the GE TEYH3030B molded case circuit breaker used for?

The GE TEYH3030B is a 30 A molded case circuit breaker used for overcurrent protection in commercial and industrial electrical distribution systems. It is suitable for branch-circuit protection in panelboards and switchboards where a 35kA interrupting rating at 277/480V AC is required.

What are the specifications of the GE TEYH3030B circuit breaker?

The GE TEYH3030B is a TEY-frame molded case circuit breaker rated 30 A with a maximum AIR rating of 35kA at 277/480V AC. It features a fixed instantaneous trip, lug terminal connections, and ABC phase connection. The manufacturer part number is TEYH3030B.

Where to buy the GE TEYH3030B circuit breaker worldwide?

3G Electric supplies the GE TEYH3030B molded case circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the GE TEYH3030B circuit breaker?

Install the GE TEYH3030B by mounting it on a DIN rail or panel, connecting the line and load conductors to the lug terminals, and torquing to the manufacturer's specifications. Ensure the breaker is in the OFF position and the system is de-energized before installation. Follow all applicable electrical codes.
