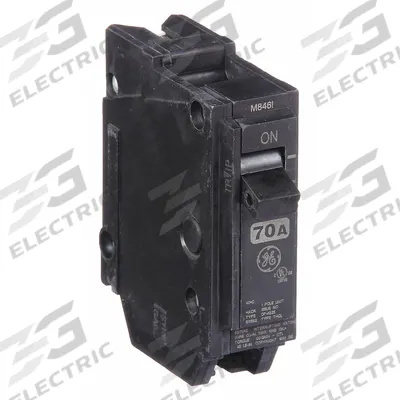

GE Miniature Circuit Breaker: THQL, 70 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
GETHQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers

GE Miniature Circuit Breaker: THQL, 70 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The GE THQL1170 is a 70 A, single-phase, plug-in miniature circuit breaker from the THQL series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is designed for use with Power Mark Gold…

SKU 3G-OTH-22711

Brand
GE
Item
Miniature Circuit Breaker: THQL, 70 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THQL1170
Type
70 A, Single Phase, 10kA at 120/240V AC, Std
AC
120/240V
Amps
70 A
Phase
Single
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE THQL1170 is a 70 A, single-phase, plug-in miniature circuit breaker from the THQL series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is designed for use with Power Mark Gold Load Centers and AQ Lighting Panels.

Frequently Asked Questions

What is the GE THQL1170 miniature circuit breaker used for?

The GE THQL1170 is a 70 A, single-phase, plug-in miniature circuit breaker rated for 120/240V AC. It protects branch circuits in Power Mark Gold Load Centers and AQ Lighting Panels, tripping automatically on overload or short circuit to prevent damage to wiring and equipment.

What are the specifications of the GE THQL1170 circuit breaker?

The GE THQL1170 is rated 70 A, 120/240V AC, single-phase, with a maximum AIR rating of 10kA at 120/240V AC. It is a plug-in type from the THQL series, designed for use with Power Mark Gold Load Centers and AQ Lighting Panels. The manufacturer part number is THQL1170.

Where to buy the GE THQL1170 circuit breaker worldwide?

3G Electric supplies the GE THQL1170 miniature circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this genuine GE part.

How to install the GE THQL1170 circuit breaker?

To install the GE THQL1170, ensure the load center is de-energized. Align the breaker's plug-in tabs with the bus bar slots in a Power Mark Gold Load Center or AQ Lighting Panel, then press firmly until it snaps into place. Always follow local electrical codes and the panel manufacturer's instructions.
