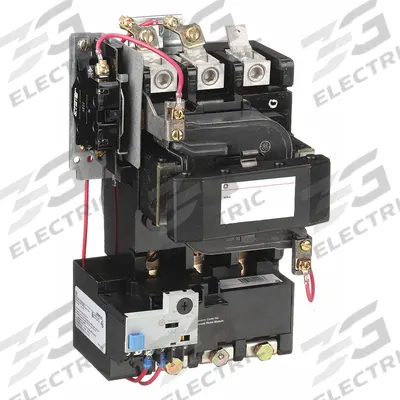

GE Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 3, 90 A - Non-Reversing Starters with Electronic Overloads
GENon-Reversing Starters with Electronic Overloads

GE Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 3, 90 A

The GE NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, featuring three poles, NEMA Size 3, and a 90 A rating. It operates with a 120V AC coil, includes a pilot light for signaling…

SKU 3G-OTH-43767

Brand
GE
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 3, 90 A
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
CR306E00200XAAAAL
Type
NEMA Size 3, 90 A
Phase
Three
Poles
3
AC Coil
120V
Coil Voltage
120V AC
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, featuring three poles, NEMA Size 3, and a 90 A rating. It operates with a 120V AC coil, includes a pilot light for signaling, and comes with one normally open auxiliary contact. No thermal units are required as it uses electronic overloads.

Frequently Asked Questions

What is the GE NEMA Magnetic Motor Starter used for?

This GE non-reversing motor starter controls three-phase motors up to 90 A in industrial applications like conveyors, pumps, and compressors. Its electronic overload protects against current overloads without thermal units, and the pilot light signals operating status.

What are the specifications of the GE CR306E00200XAAAAL motor starter?

The GE NEMA Size 3 starter has 3 poles, 90 A rating, 120V AC coil, and includes one normally open auxiliary contact. It uses electronic overloads (no thermal units needed) and features a pilot light. The part number is CR306E00200XAAAAL.

Where to buy the GE CR306E00200XAAAAL motor starter worldwide?

3G Electric supplies the GE CR306E00200XAAAAL motor starter worldwide. As a global industrial sourcing partner, we handle logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time.

How to select the correct overload for a GE NEMA Size 3 starter?

For this GE starter with electronic overloads, no separate thermal units are required. Set the overload relay dial to match the motor's full-load current rating (per nameplate). Always follow NEC and local codes for motor protection sizing.
