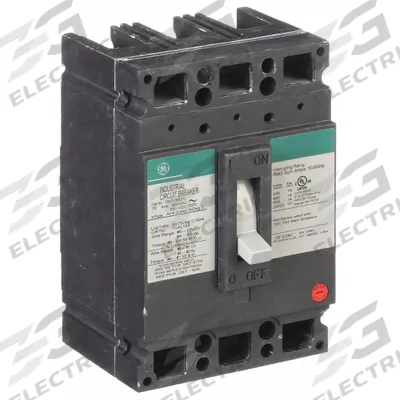

GE Molded Case Circuit Breaker: 70 A Amps, 18kA at 120/240/277/480V AC, Fixed - TED-, TEHD-Frame GE Molded Case Circuit Breakers
GETED-, TEHD-Frame GE Molded Case Circuit Breakers

GE Molded Case Circuit Breaker: 70 A Amps, 18kA at 120/240/277/480V AC, Fixed

The GE Molded Case Circuit Breaker (SKU 6AXH8) is a TED- and TEHD-frame molded case circuit breaker rated for 70 A. It features a maximum AIR rating of 18kA at 120/240/277/480V AC, a fixed instantaneous trip, and a…

SKU 3G-OTH-21256

Brand
GE
Item
Molded Case Circuit Breaker: 70 A Amps, 18kA at 120/240/277/480V AC, Fixed
Category
TED-, TEHD-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
TED136070WL
Series
TED
Type
18kA at 120/240/277/480V AC, Fixed, Line/Load Lug, ABC
Max. AIR Rating
18kA at 120/240/277/480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE Molded Case Circuit Breaker (SKU 6AXH8) is a TED- and TEHD-frame molded case circuit breaker rated for 70 A. It features a maximum AIR rating of 18kA at 120/240/277/480V AC, a fixed instantaneous trip, and a line/lug terminal connection with ABC phase connection (MPN TED136070WL).

Frequently Asked Questions

What is the GE TED136070WL molded case circuit breaker used for?

The GE TED136070WL is a 70 A molded case circuit breaker used for overcurrent protection in industrial and commercial electrical distribution panels. It is suitable for branch-circuit and feeder protection in applications requiring a fixed instantaneous trip and line/lug connections.

What are the specifications of the GE TED136070WL circuit breaker?

The GE TED136070WL is rated 70 A with a maximum AIR of 18kA at 120/240/277/480V AC. It has a fixed instantaneous trip, line/lug terminal connection, and ABC phase connection. It is part of the TED series and is a molded case circuit breaker.

Where to buy the GE TED136070WL circuit breaker worldwide?

3G Electric supplies the GE TED136070WL molded case circuit breaker to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this GE breaker.

How to select the correct GE molded case circuit breaker for my application?

To select the correct GE molded case circuit breaker, verify the continuous current rating (70 A for the TED136070WL), the available fault current (18kA at 120/240/277/480V AC), and the required trip type (fixed instantaneous). Also confirm terminal type (line/lug) and phase connection (ABC).
