InterpumpAccessories & Installation

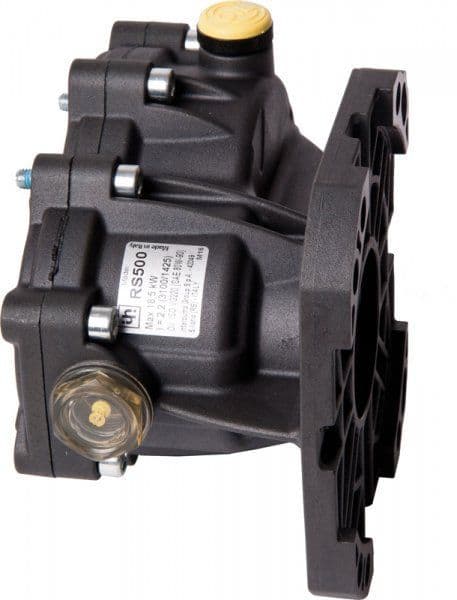

Interpump GEARBOX RS500 - D. 1" FOR PUMP TS151100U

SKU 3G-ITP-00019

Also listed as: ZONDA5010 · ZONDA5 010

Brand

Interpump

Item

GEARBOX RS500 - D. 1" FOR PUMP TS151100U

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

for pumps

47

engine flange

SAE J609-A-B

engine shaft in

1

engine shaft mm

25.4

transmission ratio i

2.2

weight without oil kg

4.2

max power transmission hp

25

max power transmission kw

18.5

Datasheet Content

FE5102




TECHNICAL INFORMATION
Flow (L/min)                        2,0 / 2,4
Flow (US Gpm)                       0,52 / 0,64
Rotation regime (rpm)               1450 / 1750
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          0,57 / 0,68
Power (kW)                          0,42 / 0,50
Overall dimensions L x l x h (mm)   177x175x130
Weight (kg)                         5,2




FE5102                                            3/22/2026   Page 1 - 8
Copyright INTERPUMP GROUP S.P.A
FE5102

     Documents

Male shaft (key) - GAS

Male shaft (key) + integrated valve




FE5102                                3/22/2026   Page 2 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




FE5102                                3/22/2026   Page 3 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.     Code           Description                  Qty Notes
KIT97    34009701                                    1
KIT96    34009601                                    1
KIT86    34008601                                    1
KIT83    34008301                                    1
KIT157   34015701                                    1
KIT123   34012301       KIT 123 INTAKE/DELIVERY      1
                        VALVE
46       98210000       PLUG G3/8X13                 1
45       51209051                                    1
44       96738000       WASHER 17,5X23X1,5           1
43       98204100       PLUG G1/4X9                  1
42       36711501       INTAKE/DELIVERY VALVE        6
41       98221600                                    6
40       90384700       O-RING 20,29X2,62(3081)      6
39       36202551       VALVE CAGE                   6
38       94737600       SPRING D. 9,4X14,8           6
37       36200176       VALVE PLATE                  6
36       36200366       VALVE SEAT                   6
35       90384100       O-RING 17,12X2,62 (3068)     6
34       96693800       WASHER 6,4X10X0,7            8
33       99194300                                    8
32       51120041                                    1
31       51100051       HEAD RING D. 15              3
30       90262000       PACKING D. 15X25X5/3,1       3
29       51080070                                    3
28       90360400       O-RING 25,12X1,78 (2100)     3
27       90383500       O-RING 15,08X2,62 (119)      3
26       92221600       NUT M8X13X5                  3
25       44211570       WASHER D. 8                  3
24       51040009                                    3
23       90357300       O-RING D. 5,28X1,78 (2021)   3

22       90502200       ANTI-EXTRUSION RING          3
21       96707000                                    3
20       90156500                                    3
19       91487700       KEY 8(h9)X7X25 UNI 6604/A    1


18       51023065                                    1
17       99180700       SCREW M 6x12 UNI 5739        4
16       50150074       CRANKCASE COVER              1
15       90164100       OIL SEAL D.25X62X10          1
14       90063500       CIRCLIP D. 25 UNI 7435       1




FE5102                                                           3/22/2026   Page 4 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

13     91832800                                    1
12     98210300         OIL DIP-STICK G3/8X51      1
11     99186700         SCREW M 6x18 UNI 5931      4
10     51160022                                    1
9      90391700                                    1
8      97731000                                    3
7      51030122                                    3
6      51050056                                    3
5      97596800         OIL LEVEL INDICATOR G3/4X15 1


4      91801400                                    1
3      90383300         O-RING 13,95X2,62 (3056)   1
2      98210050         PLUG G3/8x13 TE22          1
1      51010622                                    1




FE5102                                                         3/22/2026   Page 5 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) + integrated valve




FE5102                                             3/22/2026   Page 6 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) + integrated valve

Pos.     Code           Description                Qty Notes
KIT97    34009701                                  1
KIT96    34009601                                  1
KIT86    34008601                                  1
KIT83    34008301                                  1
KIT267   34026701                                  1
KIT157   34015701                                  1
KIT123   34012301       KIT 123 INTAKE/DELIVERY    1
                        VALVE
62       51209051                                  1
61       36005470                                  1
60       99126100                                  1
59       94740000                                  1
58       36323770                                  1
57       90502000                                  1
56       90357000       O-RING 4,48X1,78 (2018)    1
55       90356900                                  1
54       90500700                                  1
53       36005570                                  1
52       36323966                                  1
51       10008566                                  1
50       90357600                                  1
49       36005670                                  1
48       90382300       O-RING 9,92X2,62 (112)     1
47       98210000       PLUG G3/8X13               1
46       96738000       WASHER 17,5X23X1,5         1
45       98205700       PLUG M14X1,5X9             1
44       98204100       PLUG G1/4X9                2
43       10007870       NIPPLE D. 3 G3/8           1
42       36711501       INTAKE/DELIVERY VALVE      6
41       98221600                                  6
40       90384700       O-RING 20,29X2,62(3081)    7
39       36202551       VALVE CAGE                 6
38       94737600       SPRING D. 9,4X14,8         6
37       36200176       VALVE PLATE                6
36       36200366       VALVE SEAT                 6
35       90384100       O-RING 17,12X2,62 (3068)   2
34       96693800       WASHER 6,4X10X0,7          1
33       99194300                                  1
32       51120141                                  1
31       51100051       HEAD RING D. 15            3
30       90262000       PACKING D. 15X25X5/3,1     3




FE5102                                                         3/22/2026   Page 7 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) + integrated valve

Pos.   Code             Description                  Qty Notes

29     51080070                                      3
28     90360400         O-RING 25,12X1,78 (2100)     3
27     90383500         O-RING 15,08X2,62 (119)      3
26     92221600         NUT M8X13X5                  3
25     44211570         WASHER D. 8                  3
24     51040009                                      3
23     90357300         O-RING D. 5,28X1,78 (2021)   3


22     90502200         ANTI-EXTRUSION RING          3
21     96707000                                      3
20     90156500                                      3
19     91487700         KEY 8(h9)X7X25 UNI 6604/A    1


18     51023065                                      1
17     99180700         SCREW M 6x12 UNI 5739        4
16     50150074         CRANKCASE COVER              1
15     90164100         OIL SEAL D.25X62X10          1
14     90063500         CIRCLIP D. 25 UNI 7435       1
13     91832800                                      1
12     98210300         OIL DIP-STICK G3/8X51        1
11     99186700         SCREW M 6x18 UNI 5931        4
10     51160022                                      1
9      90391700                                      1
8      97731000                                      3
7      51030122                                      3
6      51050056                                      3
5      97596800         OIL LEVEL INDICATOR G3/4X15 1


4      91801400                                      1
3      90383300         O-RING 13,95X2,62 (3056)     2
2      98210050         PLUG G3/8x13 TE22            1
1      51010622                                      1




FE5102                                                           3/22/2026   Page 8 - 8
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Interpump GEARBOX RS500 - D. 1" FOR PUMP TS151100U is an accessory designed for pumps with a 47 cc/rev displacement. It features an SAE J609-A-B engine flange, accepts a 1" (25.4 mm) engine shaft, and has a transmission ratio of 2.2. With a weight of 4.2 kg without oil, it supports a maximum power transmission of 25 hp (18.5 kW).

Frequently Asked Questions

What is the Interpump GEARBOX RS500 used for?

The Interpump GEARBOX RS500 is a reduction gearbox designed to couple with the TS151100U pump. It reduces input speed to match pump requirements, enabling efficient high-pressure water jetting in industrial cleaning, surface preparation, and hydro-demolition applications across Singapore.

What are the specifications of the Interpump GEARBOX RS500?

The GEARBOX RS500 has a transmission ratio of 2.2:1, accepts a 1-inch SAE J609-A-B engine shaft, and transmits up to 25 hp (18.5 kW). It weighs 4.2 kg without oil and is built by Interpump for reliable power transmission in demanding industrial environments.

Where to buy the Interpump GEARBOX RS500 in Singapore?

3G Electric sources and delivers the Interpump GEARBOX RS500 to Singapore. We handle logistics, customs clearance, and local delivery, providing technical support for your pump accessory needs. Contact us for availability and lead time.

How to install the Interpump GEARBOX RS500 on a TS151100U pump?

Installation requires aligning the gearbox input shaft with the engine output using the SAE J609-A-B flange. Secure the gearbox to the pump, fill with the recommended oil, and check the oil level via the dip-stick. Always follow Interpump's manual for torque specs and alignment tolerances.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection
