HAM-LET Compression Fitting Elbow: 1/2 in OD x 1/4 in Pipe Fitting Size - Double-Ferrule Stainless Steel Fittings
HAM-LETDouble-Ferrule Stainless Steel Fittings

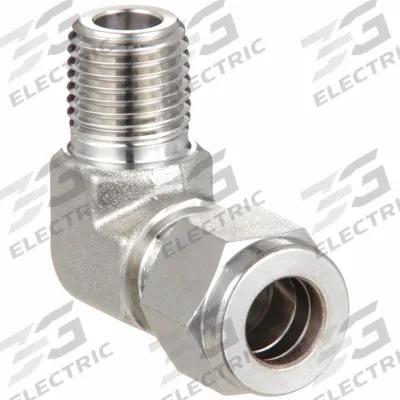

HAM-LET Compression Fitting Elbow: 1/2 in OD x 1/4 in Pipe Fitting Size

The HAM-LET Compression Fitting Elbow is a double-ferrule stainless steel fitting with a 1/2 in OD x 1/4 in pipe fitting size, Compression x MNPT type (MPN 769L SS 1/2 X 1/4). It is compatible with Swagelok fitting…

SKU 3G-OTH-471954

Brand
HAM-LET
Item
Compression Fitting Elbow: 1/2 in OD x 1/4 in Pipe Fitting Size
Category
Double-Ferrule Stainless Steel Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HAM-LET
Manufacturer Part Number
769L SS 1/2 X 1/4
Type
Compression x MNPT
Compatible Fitting Brands
Swagelok
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HAM-LET Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HAM-LET Compression Fitting Elbow is a double-ferrule stainless steel fitting with a 1/2 in OD x 1/4 in pipe fitting size, Compression x MNPT type (MPN 769L SS 1/2 X 1/4). It is compatible with Swagelok fitting brands.

Frequently Asked Questions

What is a HAM-LET compression fitting elbow used for?

A HAM-LET compression fitting elbow connects tubing to a male NPT port at a 90-degree angle. It is used in instrumentation, hydraulic, and process systems where a leak-tight, vibration-resistant seal is required. The double-ferrule design ensures reliable metal-to-metal grip on the tubing.

What are the specifications of the HAM-LET 769L SS 1/2 X 1/4 elbow?

This HAM-LET double-ferrule stainless steel elbow has a compression end for 1/2 in OD tubing and a 1/4 in male NPT pipe thread. The MPN is 769L SS 1/2 X 1/4. It is compatible with Swagelok fitting brands and is made from 316 stainless steel for corrosion resistance.

Where to buy HAM-LET compression fittings for worldwide delivery?

3G Electric supplies HAM-LET compression fittings, including the 769L SS 1/2 X 1/4 elbow, to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this double-ferrule stainless steel fitting.

How to install a HAM-LET double-ferrule compression fitting?

Insert the tubing fully into the fitting until it bottoms against the shoulder. Tighten the nut finger-tight, then use a wrench to turn the nut 1-1/4 turns past finger-tight for 1/2 in OD tubing. This creates a proper bite from the front and back ferrule for a leak-free seal. Do not over-tighten.
