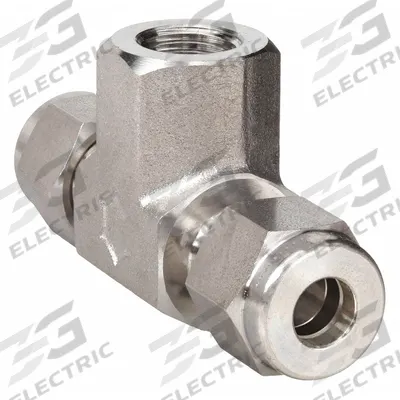

HAM-LET Compression Tee Fitting: 1/2 in OD x 1/2 in OD x 1/4 in Pipe Fitting Size - Double-Ferrule Stainless Steel Fittings
HAM-LETDouble-Ferrule Stainless Steel Fittings

HAM-LET Compression Tee Fitting: 1/2 in OD x 1/2 in OD x 1/4 in Pipe Fitting Size

The HAM-LET Compression Tee Fitting is a double-ferrule stainless steel fitting from the Let-Lok series, sized 1/2 in OD x 1/2 in OD x 1/4 in (MPN 772LF SS 1/2 X 1/4). It is compatible with Swagelok fittings…

SKU 3G-OTH-471504

Brand
HAM-LET
Item
Compression Tee Fitting: 1/2 in OD x 1/2 in OD x 1/4 in Pipe Fitting Size
Category
Double-Ferrule Stainless Steel Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HAM-LET
Manufacturer Part Number
772LF SS 1/2 X 1/4
Series
Let-Lok
Type
Stainless Steel
Compatible Fitting Brands
Swagelok
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HAM-LET Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HAM-LET Compression Tee Fitting is a double-ferrule stainless steel fitting from the Let-Lok series, sized 1/2 in OD x 1/2 in OD x 1/4 in (MPN 772LF SS 1/2 X 1/4). It is compatible with Swagelok fittings, providing a reliable connection for industrial tubing systems.

Frequently Asked Questions

What is a HAM-LET Compression Tee Fitting used for?

A HAM-LET Compression Tee Fitting creates a leak-tight branch connection in stainless steel tubing systems. It is used in instrumentation, chemical processing, and hydraulic lines where reliable sealing and vibration resistance are required. The double-ferrule design grips tubing securely without welding.

What are the specifications of the HAM-LET 772LF SS 1/2 X 1/4?

The HAM-LET 772LF SS 1/2 X 1/4 is a double-ferrule compression tee from the Let-Lok series. It has a 1/2 in OD tube x 1/2 in OD tube x 1/4 in pipe fitting size, is made of stainless steel, and is compatible with Swagelok fittings. The manufacturer part number is 772LF SS 1/2 X 1/4.

Where to buy HAM-LET compression fittings worldwide?

3G Electric supplies HAM-LET compression fittings worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us to source the HAM-LET 772LF SS 1/2 X 1/4 or other Let-Lok series fittings for your application.

How to install a HAM-LET double-ferrule compression fitting?

To install a HAM-LET double-ferrule fitting, insert the tubing fully into the fitting, then tighten the nut finger-tight. Mark the nut position, then tighten an additional 1-1/4 turns for 1/2 in OD tubing. Always use a backup wrench on the body to prevent twisting. Refer to the manufacturer's instructions for torque values.
