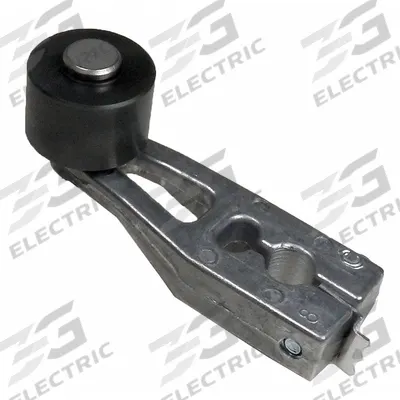

Honeywell Limit Switch Lever Arm: Roller Lever, Fixed, 1.5 in Arm/Operator Lg - Max - Roller Levers for Limit Switches
HoneywellRoller Levers for Limit Switches

Honeywell Limit Switch Lever Arm: Roller Lever, Fixed, 1.5 in Arm/Operator Lg - Max

The HONEYWELL LSZ51P is a roller lever arm for limit switches, featuring a rotary lever roller actuator with a front roller position. It is compatible with the 914CE series and has a fixed 1.5-inch maximum…

SKU 3G-OTH-30078

Brand
Honeywell
Item
Limit Switch Lever Arm: Roller Lever, Fixed, 1.5 in Arm/Operator Lg - Max
Category
Roller Levers for Limit Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
LSZ51P
Type
Fixed, 1.5 in Arm/Operator Lg - Max, 14CE/914CE/HDLS
Actuator Style
Rotary Lever Roller
Roller Position
Front
Compatible with Series
914CE
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HONEYWELL LSZ51P is a roller lever arm for limit switches, featuring a rotary lever roller actuator with a front roller position. It is compatible with the 914CE series and has a fixed 1.5-inch maximum arm/operator length. This lever arm is designed for use with HONEYWELL limit switches.

Frequently Asked Questions

What is the HONEYWELL LSZ51P limit switch lever arm used for?

The HONEYWELL LSZ51P is a roller lever arm that actuates limit switches in industrial machinery. It uses a rotary lever roller with a front roller position to detect position or motion. Common applications include conveyor systems, packaging equipment, and automated assembly lines where reliable mechanical switching is required.

What are the specifications of the HONEYWELL LSZ51P?

The HONEYWELL LSZ51P is a fixed roller lever arm with a 1.5-inch maximum arm/operator length. It features a rotary lever roller actuator with a front roller position and is compatible with the 914CE series limit switches. The actuator style is rotary lever roller, and the manufacturer part number is LSZ51P.

Where to buy the HONEYWELL LSZ51P worldwide?

3G Electric supplies the HONEYWELL LSZ51P roller lever arm to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this genuine HONEYWELL limit switch accessory.

How to install the HONEYWELL LSZ51P roller lever on a limit switch?

To install the HONEYWELL LSZ51P, first ensure the limit switch is de-energized. Attach the lever arm to the actuator shaft of the compatible 914CE series switch, aligning the mounting hole. Tighten the securing screw to the manufacturer's recommended torque. Verify free movement of the roller before re-energizing the circuit.
