Interpump PUMP SN3B2513 - Pumps & Compressors

Technical Documents

No technical documents available for this product.
Request documentation →

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.

Quick Inquiry

InterpumpPumps & Compressors
Available to Order

Interpump PUMP SN3B2513

The Interpump SN3B2513 is a compact industrial pump delivering 13 L/min at 250 bar, powered by a 7.13 kW motor at 1450 rpm. Weighing just 9.5 kg, it serves high-pressure hydraulic applications across manufacturing…

SKU 3G-ITP-03795

Also listed as: SN3B2513000 · SN3B2513 000

Brand
Interpump
Item
PUMP SN3B2513
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
250 bar
Power
7.13 kW
Weight
9.5 kg
Power
9.7 HP
Flow (US)
3.43 GPM
Pressure
25 MPa
Pressure
3625 PSI
rotation rpm
1450
dimensions mm
265x223x140
View Full Spec Sheet
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
SG-based team
Sign in to view pricing
Qty
Create a free account to submit your RFQ and download technical documents.
Not sure this is the right part? Get a recommendation.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Interpump SN3B2513 is a compact industrial pump delivering 13 L/min at 250 bar, powered by a 7.13 kW motor at 1450 rpm. Weighing just 9.5 kg, it serves high-pressure hydraulic applications across manufacturing and mobile equipment sectors.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SN3B2513 parts list — 66 parts, 66 available in catalog

Official Parts List

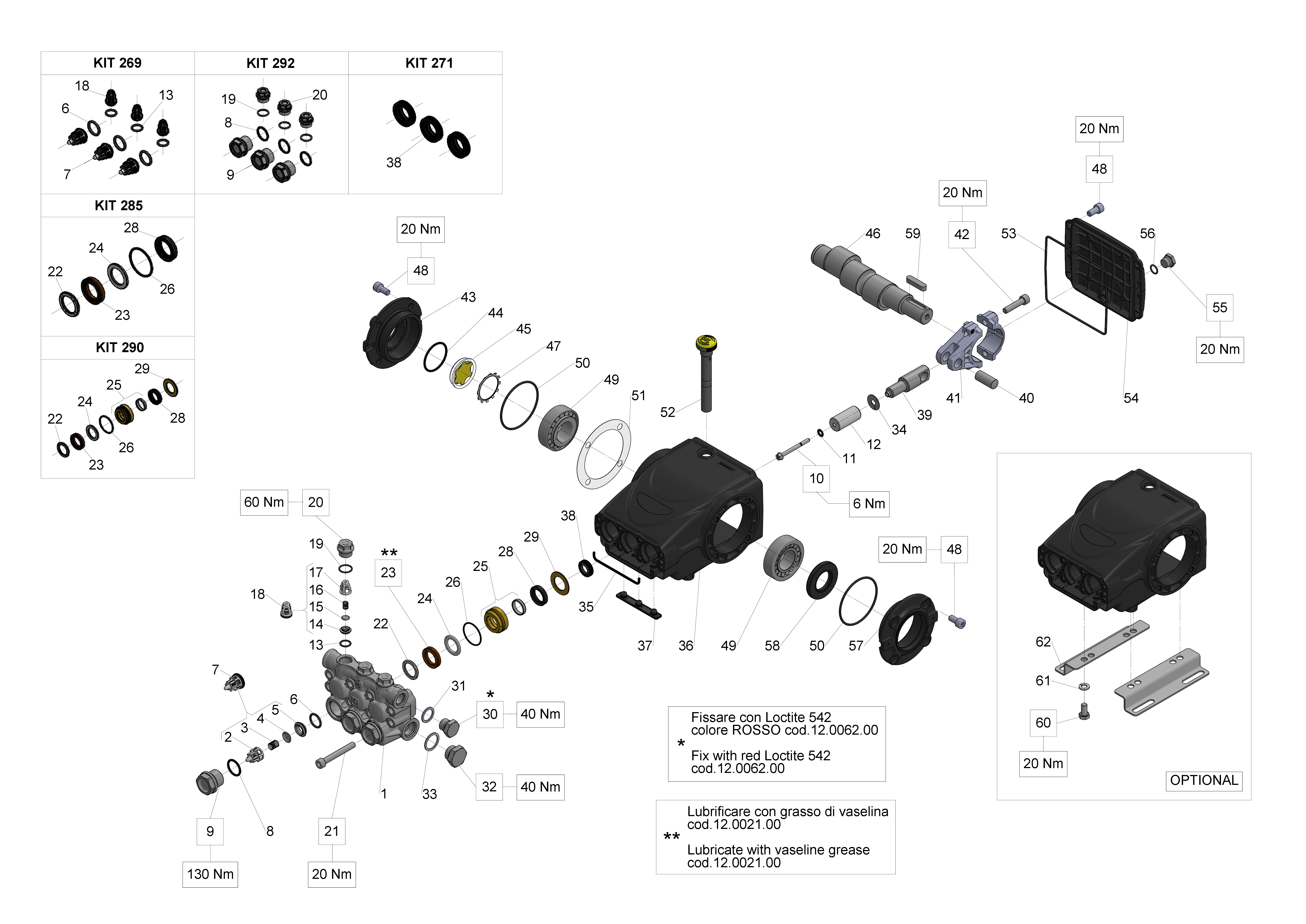

Exploded Diagram — Male shaft (key)View full size
SN3B2513 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT285
KIT 285 PACKING D.20 59 SERIES
34028501×1Available
View
KIT290
KIT 290 CPL.SEAL D.20 59 SER.
34029001×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
11
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

66 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SN3B2513 parts list — Industrial Pumps (Series 59 E3)

Recommended Spare Parts

CONNECTING ROD COMPLETE

Spare Parts

CONNECTING ROD COMPLETE

59030001

WASHER 21,5X27X1,5

Accessories

WASHER 21,5X27X1,5

96751400

KEY 8(h9)X7X35 UNI 6604/A

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

⚙

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

⚙

Spare Parts

SPONGE GASKET D.3X103

59211082

KIT 269 INTAKE/DELIVERY VALVES

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

O-RING 10,82X1,78 (2043)

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

⚙

Spare Parts

OIL SEAL D.15X24X5/7

90156550

KIT 271 OIL SEAL D.15 58/59 SERIES

Spare Parts

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101

⚙

Spare Parts

PACKING D.20X30X6/3.7 H.P. 66 SERIES

90269100

VITE M08x60 5931 12.9 G321A+M

Spare Parts

VITE M08x60 5931 12.9 G321A+M

99317700

VALVE PLATE

Valves

VALVE PLATE

36200176

View full cross-reference for Interpump 3G-ITP-03795→
