Interpump PUMP SSE2015 - Pumps & Compressors
Image not available
InterpumpPumps & Compressors

Interpump PUMP SSE2015

Interpump SSE2015 is a compact industrial pump delivering 15 L/min at 200 bar, powered by a 5.73 kW motor operating at 1450 rpm. Weighing 12.8 kg with dimensions of 315.5×236×180 mm, it suits high-pressure hydraulic…

SKU 3G-ITP-03804

Also listed as: SSE2015000 · SSE2015 000

Brand
Interpump
Item
PUMP SSE2015
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
200 bar
Power
5.73 kW
Weight
12.8 kg
Power
7.8 HP
Flow (US)
3.96 GPM
Pressure
20 MPa
Pressure
2900 PSI
rotation rpm
1450
dimensions mm
315.5x236x180
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump SSE2015 is a compact industrial pump delivering 15 L/min at 200 bar, powered by a 5.73 kW motor operating at 1450 rpm. Weighing 12.8 kg with dimensions of 315.5×236×180 mm, it suits high-pressure hydraulic and fluid-transfer applications requiring reliable, space-efficient performance.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SSE2015 parts list — 108 parts, 52 available in catalog

Official Parts List

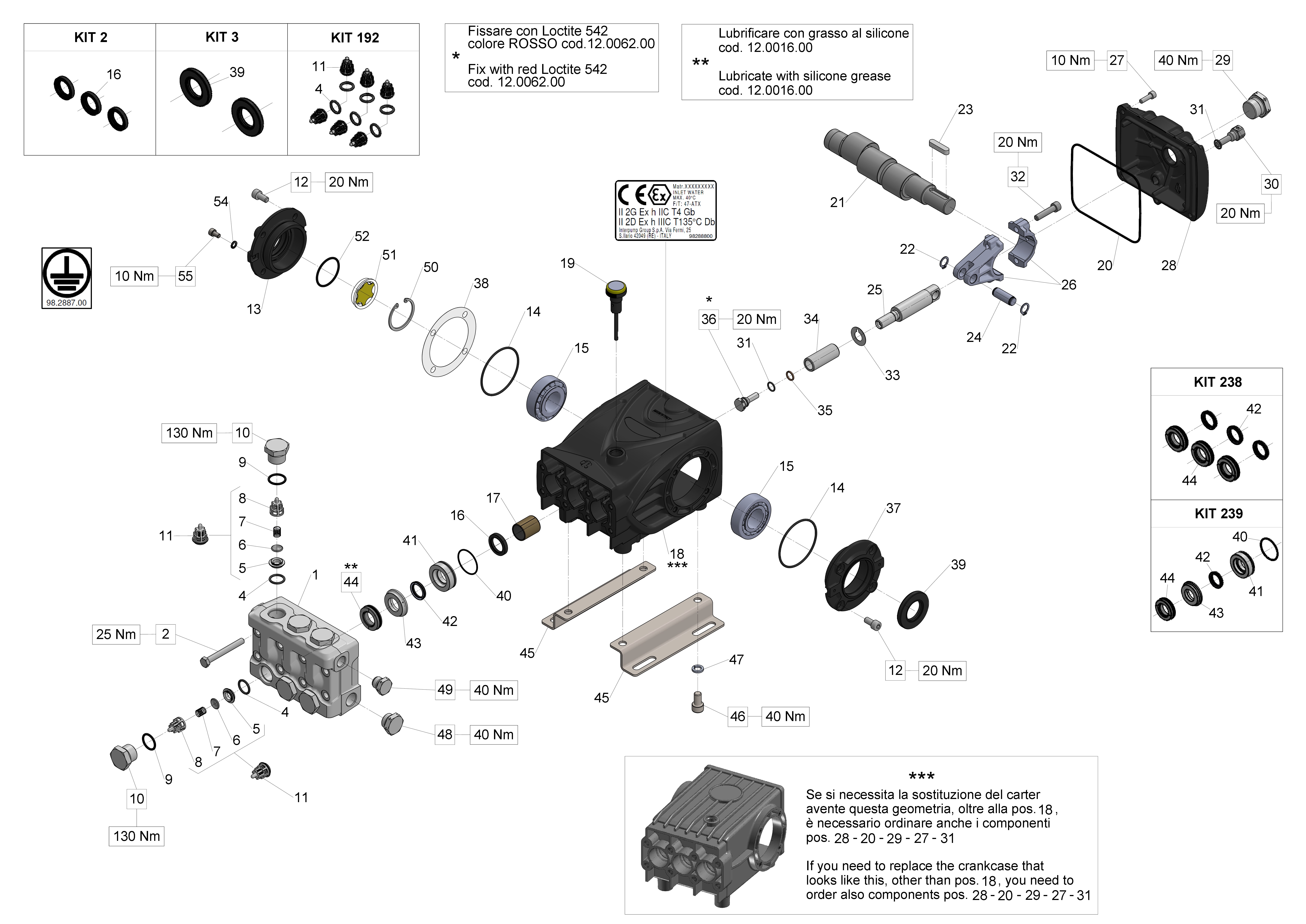

Exploded Diagram — Male shaft (key)View full size
SSE2015 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT192
View
KIT238
KIT 238 SEALS D.20 CW
34023801×1Available
View

Individual Components

PosCodeDescriptionQty
1
S.S. MANIFOLD (47SS) SSE2015
47121936×1Available
View
2
SCREW M8X70 STAINLESS
99320700×8Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT STAINLESS (63SS)
36203666×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D.9.4X14.8 - S.S.
94737300×6Available
View
8
VALVE CAGE
36202551×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
VALVE CAP M24X2X16 STAINLESS
98223000×6Available
View
11
VALVE ASSY (63 SS)
36713001×6Available
View
12
SCREW M8X16 - STAINLESS
99303800×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING 32206 SKF
91837800×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
18
CRANKCASE
47010822×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
View
21
CRANKSHAFT C.12 S.p.f. U.S.
47021835×1Available
View

Need multiple parts? Request a bundled quote

52 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SSE2015 parts list — Industrial Pumps (Stainless Steel Versions Series 47 SS)

Recommended Spare Parts

Spare Parts

PISTON GUIDE S.S.

47050766

Spare Parts

PACKING RETAINER D. 20 S.S.

47081566

VALVE PLATE

Valves

VALVE PLATE

36200176

Accessories

WASHER D.14X28X0.5-STAINLESS

96728700

SCREW M8X16 - STAINLESS

Accessories

SCREW M8X16 - STAINLESS

99303800

Spare Parts

CRANKCASE

47010822

SEAL D.20X26.15 L.P.(66HT)

Spare Parts

SEAL D.20X26.15 L.P.(66HT)

90225000

O-RING 10,82X1,78 (2043)

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

KIT 192 INTAKE/DELIVERY VALVE (47/63 SS)

34019201

KEY 8X7X35

Accessories

KEY 8X7X35

91489000

SHIM D.74,5X104X0,1

Spare Parts

SHIM D.74,5X104X0,1

97567800

CONNECTING-ROD PIN D.13X35,5

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000

View full cross-reference for Interpump 3G-ITP-03804
