JAY R. SMITH MFG. COLight-Duty Floor Drain Grates (Class A)

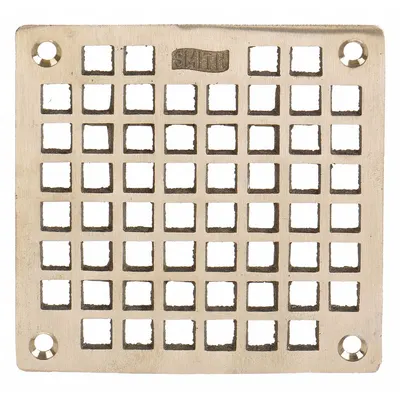

JAY R. SMITH MFG. CO Grate: A, Square, 4 5/8 in Overall Wd, 1/8 in Overall Ht, Nickel Bronze

The JAY R. SMITH MFG. CO B05NBG is a Class A light-duty floor drain grate with a square shape, 4 5/8 in overall width, and 1/8 in overall height. It features a Nickel Bronze finish in the Bronze color family.

SKU 3G-OTH-429106

Brand

JAY R. SMITH MFG. CO

Item

Grate: A, Square, 4 5/8 in Overall Wd, 1/8 in Overall Ht, Nickel Bronze

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

JAY R. SMITH MFG. CO

Manufacturer Part Number

B05NBG

Type

Square, Nickel Bronze, Bronze

Finish

Nickel Bronze

Overall Ht

1/8 in

Overall Wd

4 5/8 in

Color Family

Bronze

SMITH MFG. CO Grate

A

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

JAY R. SMITH MFG. CO Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the JAY R. SMITH MFG. CO B05NBG grate used for?

The JAY R. SMITH MFG. CO B05NBG is a Class A light-duty floor drain grate designed for indoor applications where pedestrian traffic is light, such as basements, laundry rooms, or commercial kitchens. Its square shape and Nickel Bronze finish provide corrosion resistance and a bronze appearance.

What are the specifications of the JAY R. SMITH MFG. CO B05NBG?

The JAY R. SMITH MFG. CO B05NBG is a square grate with a 4 5/8 in overall width and 1/8 in overall height. It has a Nickel Bronze finish in the Bronze color family. This Class A light-duty floor drain grate is manufactured by JAY R. SMITH MFG. CO under part number B05NBG.

Where to buy the JAY R. SMITH MFG. CO B05NBG worldwide?

3G Electric supplies the JAY R. SMITH MFG. CO B05NBG grate to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the JAY R. SMITH MFG. CO B05NBG floor drain grate?

Install the JAY R. SMITH MFG. CO B05NBG by placing it into the drain body recess, ensuring it sits flush with the finished floor surface. For light-duty Class A applications, no special tools are required. Follow standard plumbing practices for floor drain grate installation to ensure proper drainage and stability.

Used in

Common applications for JAY R. SMITH MFG. CO

Commercial kitchen drainage — JAY R. SMITH MFG. CO floor drain bodies with trap primer connections (e.g., MPN 2005Y04BA-P050)

Industrial floor maintenance access — JAY R. SMITH MFG. CO floor cleanout covers (e.g., MPN 4020C04PB) for inspection points

Wall-mounted plumbing access — JAY R. SMITH MFG. CO wall cleanout covers (e.g., MPN 4710-07) in stainless steel for corrosion resistance

Grease interceptor sealing — JAY R. SMITH MFG. CO rubber gaskets (e.g., MPN 8760CGASK) for interceptor cover replacement

Light-duty floor drain grates — JAY R. SMITH MFG. CO Class A bronze grates (e.g., MPN A08PBG) for low-traffic areas

Trap seal maintenance — JAY R. SMITH MFG. CO cast bronze trap primers (e.g., MPN 2699-1LF) for automatic water replenishment
