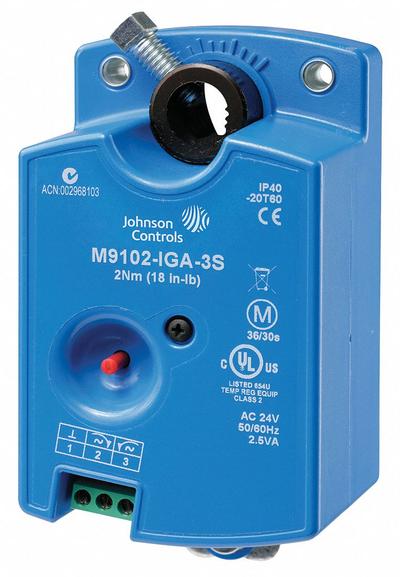

JOHNSON CONTROLS Actuator: Dampers/VAV Boxes/Zone Valves, Floating Point with Timeout/On/Off - Non-Fail-Safe Actuators
JOHNSON CONTROLSNon-Fail-Safe Actuators

JOHNSON CONTROLS Actuator: Dampers/VAV Boxes/Zone Valves, Floating Point with Timeout/On/Off

The JOHNSON CONTROLS M9102-IGA-3S is a non-fail-safe actuator for dampers, VAV boxes, and zone valves. It operates with a 24V AC input, features a self-centering clamping shaft, and provides a 90° stroke with CW/CCW…

SKU 3G-OTH-67011

Brand
JOHNSON CONTROLS
Item
Actuator: Dampers/VAV Boxes/Zone Valves, Floating Point with Timeout/On/Off
Category
Non-Fail-Safe Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
M9102-IGA-3S
Type
Floating Point with Timeout/On/Off, Non-Spring Return
Shaft Type
Self-Centering Clamping
Input Voltage
24V AC
Stroke Degree
90°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
No
Electrical Connection Type
Screw Terminals
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS M9102-IGA-3S is a non-fail-safe actuator for dampers, VAV boxes, and zone valves. It operates with a 24V AC input, features a self-centering clamping shaft, and provides a 90° stroke with CW/CCW rotation. This floating-point actuator with timeout/on/off control is compatible with building automation systems and uses screw terminals for electrical connection.
