JOHNSON CONTROLS Pneumatic Valve Actuator: 3 psi to 13 psi Spring, 5/16 in Stroke - Pneumatic Valve Actuators
JOHNSON CONTROLSPneumatic Valve Actuators

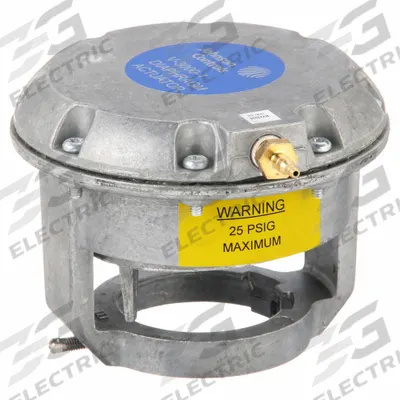

JOHNSON CONTROLS Pneumatic Valve Actuator: 3 psi to 13 psi Spring, 5/16 in Stroke

The JOHNSON CONTROLS Pneumatic Valve Actuator (MPN V-3000-1) is a spring-return actuator with a 3 psi to 13 psi spring range and a 5/16 in stroke, designed for use with 1/2 in, 1 1/2 in, and 3/4 in valves. A mounting…

SKU 3G-OTH-67425

Brand
JOHNSON CONTROLS
Item
Pneumatic Valve Actuator: 3 psi to 13 psi Spring, 5/16 in Stroke
Category
Pneumatic Valve Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
V-3000-1
Type
For 1/2 in_1 1/2 in_3/4 in Valves
Stroke
5/16 in
Mounting Kit Included
Yes
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS Pneumatic Valve Actuator (MPN V-3000-1) is a spring-return actuator with a 3 psi to 13 psi spring range and a 5/16 in stroke, designed for use with 1/2 in, 1 1/2 in, and 3/4 in valves. A mounting kit is included with this unit.

Frequently Asked Questions

What is the JOHNSON CONTROLS V-3000-1 pneumatic valve actuator used for?

The JOHNSON CONTROLS V-3000-1 is a spring-return pneumatic valve actuator used in HVAC and industrial fluid control systems. It modulates valve position based on a 3 psi to 13 psi control signal, providing reliable open/close or proportional regulation for 1/2 in, 3/4 in, and 1 1/2 in valves.

What are the specifications of the JOHNSON CONTROLS V-3000-1 pneumatic valve actuator?

The JOHNSON CONTROLS V-3000-1 has a spring range of 3 psi to 13 psi and a stroke of 5/16 in. It is designed for use with 1/2 in, 3/4 in, and 1 1/2 in valves. A mounting kit is included. The manufacturer part number is V-3000-1.

Where to buy the JOHNSON CONTROLS V-3000-1 pneumatic valve actuator worldwide?

You can source the JOHNSON CONTROLS V-3000-1 pneumatic valve actuator through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to install the JOHNSON CONTROLS V-3000-1 pneumatic valve actuator?

Install the JOHNSON CONTROLS V-3000-1 by first ensuring the valve is in the closed position. Use the included mounting kit to attach the actuator to the valve body. Connect the pneumatic supply line (3 psi to 13 psi) and verify the 5/16 in stroke aligns with the valve stem travel. Test for proper spring-return operation.

Used in

Common applications for JOHNSON CONTROLS
Industrial refrigeration — Johnson Controls P170SA-1C dual pressure control for compressor protection in ammonia or halocarbon systems
Chiller plant automation — Johnson Controls VA7810-HGA-2 electric globe valve actuator for modulating chilled water flow in VG7000 series valves
Pneumatic HVAC retrofit — Johnson Controls T-4002-302 conversion kit for upgrading existing Robertshaw thermostats in commercial buildings
Cooling tower water management — Johnson Controls V-4332-1007 pneumatically actuated diaphragm valve for 3-way diverting of water flow
Boiler fuel oil pressure monitoring — Johnson Controls P545NCB-25C electronic lube oil pressure control with alarm for burner management systems
Process pressure sensing — Johnson Controls P599AAPS105C pressure transmitter with IP67 rating for washdown zones in food and beverage plants
