JW WINCONonlocking Vertical-Mount Pull-Knob Indexing Plungers

JW WINCO Indexing Plungers - Plate Mount: 8 mm Plunger Wd

SKU 3G-OTH-191092

Brand

JW WINCO

Item

Indexing Plungers - Plate Mount: 8 mm Plunger Wd

Technical Specifications

JW WINCO

Manufacturer Part Number

8W18L89

Type

- Plate Mount: 8 mm Plunger Wd

Plunger Projection

18 mm

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

JW WINCO Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

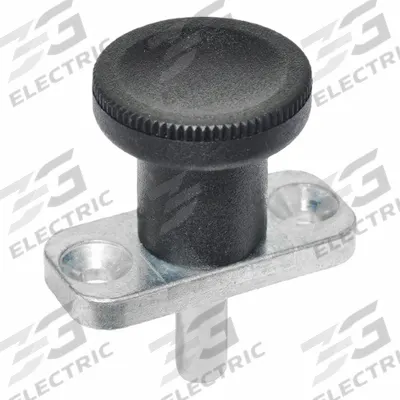

The JW WINCO Indexing Plunger (MPN 8W18L89) is a nonlocking vertical-mount pull-knob indexing plunger with a plate mount, 8 mm plunger width, and 18 mm plunger projection. 3G Electric interprets this demand and sources the genuine OEM part, supporting your industrial positioning and fixturing needs across 14 departments, with specialist depth in controls and motion components.

Frequently Asked Questions

What is a JW WINCO indexing plunger used for?

A JW WINCO indexing plunger is used to precisely locate and lock moving parts in machinery, such as jigs, fixtures, and assembly lines. The plate-mount, nonlocking vertical-mount pull-knob design allows quick manual retraction for repositioning. Common in industrial automation and material handling, it ensures repeatable positioning without tools.

What are the specifications of the JW WINCO 8W18L89 indexing plunger?

The JW WINCO 8W18L89 is a nonlocking vertical-mount pull-knob indexing plunger with a plate mount. It has an 8 mm plunger width and an 18 mm plunger projection. This JW WINCO model is designed for applications requiring a compact, manually operated locating solution with a pull-knob for easy retraction.

Where to buy JW WINCO indexing plungers worldwide?

You can source JW WINCO indexing plungers worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the 8W18L89 or other JW WINCO models. We supply genuine components for industrial automation needs.

How to install a JW WINCO plate-mount indexing plunger?

To install a JW WINCO plate-mount indexing plunger, drill and tap mounting holes per the plunger's flange pattern. Secure the plunger with bolts, ensuring the plunger pin aligns with the mating hole. For the 8W18L89, verify the 18 mm projection engages fully. Use a pull-knob to retract; release to lock. Follow standard machine safety practices.
