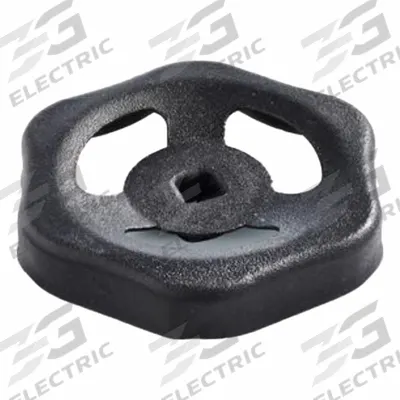

JW WINCO Valve Handwheel: 6 Point, 100 mm Handle Dia, 9 mm Square Spindle, Black
The JW WINCO Valve Handwheel: 6 Point is a 6-lobed valve knob with a square through-hole, designed for manual valve operation. This model features a 100 mm handle diameter, a 9 mm square spindle, and is constructed…
SKU 3G-OTH-420493
Need installation or engineering help?
Ask a question
Product Description
The JW WINCO Valve Handwheel: 6 Point is a 6-lobed valve knob with a square through-hole, designed for manual valve operation. This model features a 100 mm handle diameter, a 9 mm square spindle, and is constructed from steel with a black finish. The handwheel is identified by manufacturer part number 227.6-ST-100-V9-SW.
Frequently Asked Questions
What is the JW WINCO 6-point valve handwheel used for?
The JW WINCO 6-point valve handwheel is used for manual operation of industrial valves, such as gate, globe, or butterfly valves. Its 6-lobed design provides a secure grip for turning a 9 mm square spindle, making it suitable for process control in water treatment, chemical plants, and oil and gas facilities.
What are the specifications of the JW WINCO valve handwheel 227.6-ST-100-V9-SW?
The JW WINCO valve handwheel has a 100 mm handle diameter, a 9 mm square spindle, and a through-hole design. It is made of steel with a black finish and features a 6-point (6-lobed) grip. The manufacturer part number is 227.6-ST-100-V9-SW, and it is designed for manual valve operation in industrial settings.
Where to buy JW WINCO valve handwheels worldwide?
You can source the JW WINCO valve handwheel 227.6-ST-100-V9-SW from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times on this and other JW WINCO valve components.
How to install a JW WINCO 6-point valve handwheel?
To install the JW WINCO 6-point valve handwheel, align the 9 mm square through-hole with the valve stem and slide it into place. Secure the handwheel using the valve's retaining hardware, such as a nut or set screw. Ensure the handwheel is firmly attached before applying torque to avoid slippage during operation.
Used in
Common applications for JW WINCOJW WINCO Products
3G Electric supplies JW WINCO 6-lobed valve knobs with square through-hole. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
