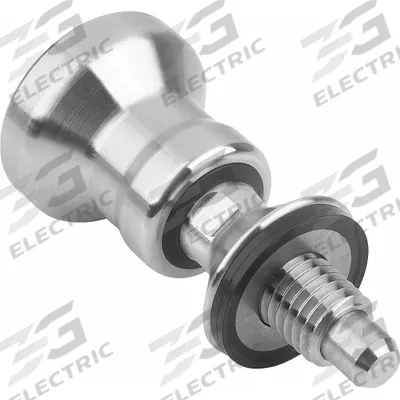

KIPP Indexing Plunger: Nonlocking, 316L SS, M10x1 Thread - Nonlocking Hygienic Pull-Knob Indexing Plungers for USIT Washers
KIPPNonlocking Hygienic Pull-Knob Indexing Plungers for USIT Washers

KIPP Indexing Plunger: Nonlocking, 316L SS, M10x1 Thread

SKU 3G-OTH-180136

Brand
KIPP
Item
Indexing Plunger: Nonlocking, 316L SS, M10x1 Thread
Category
Nonlocking Hygienic Pull-Knob Indexing Plungers for USIT Washers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

KIPP
Manufacturer Part Number
K1698.0110611
Type
M10x1 Thread
SS
316L
Nose Force
40 N to 45 N
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

KIPP Products
3G Electric (S) Pte. Ltd. — Singapore

Frequently Asked Questions

What is a KIPP indexing plunger used for?

A KIPP indexing plunger is used for precise positioning and locking of moving parts in industrial machinery, such as indexing tables, jigs, and fixtures. The nonlocking hygienic pull-knob design with 316L stainless steel is ideal for food processing, pharmaceutical, and sanitary applications where corrosion resistance and washdown are required.

What are the specifications of the KIPP K1698.0110611 indexing plunger?

The KIPP K1698.0110611 is a nonlocking hygienic pull-knob indexing plunger made from 316L stainless steel with an M10x1 thread. It provides a nose force of 40 N to 45 N and is designed for use with USIT washers. This model is suitable for sanitary environments requiring frequent cleaning.

Where to buy KIPP indexing plungers worldwide?

3G Electric supplies KIPP indexing plungers worldwide, handling full logistics and customs clearance for international orders. As a global industrial solutions provider, we source genuine KIPP parts like the K1698.0110611 and deliver them to your facility, regardless of location. Contact us for a quote and delivery timeline.

How to install a KIPP nonlocking indexing plunger?

To install a KIPP nonlocking indexing plunger, drill and tap an M10x1 threaded hole in your fixture or plate. Insert the plunger and tighten to the recommended torque. Ensure the USIT washer is properly seated for hygienic sealing. The pull-knob allows manual retraction; release to engage the nose against the detent.

Used in

Common applications for KIPP
Jig and fixture construction — KIPP indexing plungers (e.g., SKU 53EC55) for repeatable workpiece positioning
Assembly line tooling — KIPP threaded grippers with flat pads (e.g., SKU 801Y95) for clamping components
Machine tool alignment — KIPP tapered-head locating pins (e.g., SKU 801XY4) for precise part registration
Sanitary processing equipment — KIPP hygienic sockets (e.g., SKU 802KU2) for tooling in food-grade environments
Abrasive material handling — KIPP diamond-faced inserts (e.g., SKU 801XH6) for gripping in dusty or gritty conditions
Fixture leveling and support — KIPP positioning feet with flat faces (e.g., SKU 615V08) for stable machine setup

KIPP Products

3G Electric supplies KIPP nonlocking hygienic pull-knob indexing plungers for usit washers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
