LEESON 143TTFN16040 Rigid Base 3-Phase General Purpose AC Motor - Rigid Base 3-Phase General Purpose AC Motors
LEESONRigid Base 3-Phase General Purpose AC Motors

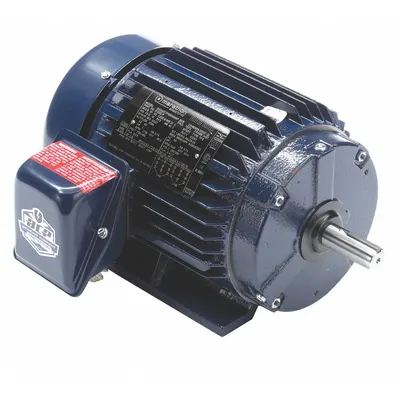

LEESON 143TTFN16040 Rigid Base 3-Phase General Purpose AC Motor

The LEESON General Purpose Motor: Rigid Base Mount (SKU 143TTFN16040, MPN 143TTFN16040) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1 hp with a nameplate voltage of 230/460V…

SKU 3G-OTH-55600

Brand
LEESON
Item
143TTFN16040 Rigid Base 3-Phase General Purpose AC Motor
Part Number
143TTFN16040
Category
Rigid Base 3-Phase General Purpose AC Motors
Available to Order
Also known as:143TTFN16040LEESON
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. Bank transfer and corporate PO accepted.

Technical Specifications

LEESON
Manufacturer Part Number
143TTFN16040
Type
Totally Enclosed Fan Cooled, 1 hp
AC
230/460V
Motor Enclosure
TEFC
Nameplate RPM @ 60 Hz
1,735 RPM
Full Load Current @ 60 Hz
3.0/1.5 A
Nameplate Voltage @ 60 Hz
230/460V AC

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Ask a question

Request a Quote

Ask a question

LEESON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEESON General Purpose Motor: Rigid Base Mount (SKU 143TTFN16040, MPN 143TTFN16040) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1 hp with a nameplate voltage of 230/460V AC, a full load current of 3.0/1.5 A at 60 Hz, and a nameplate RPM of 1,735 RPM at 60 Hz.

Frequently Asked Questions

What is the LEESON 143TTFN16040 general purpose motor used for?

The LEESON 143TTFN16040 is a 1 hp, 230/460V AC, 1,735 RPM TEFC rigid base motor used in industrial applications such as pumps, fans, conveyors, and compressors. Its TEFC enclosure protects against dust and moisture, making it suitable for harsh environments.

What are the specifications of the LEESON 143TTFN16040 motor?

The LEESON 143TTFN16040 is a 1 hp, 3-phase motor with a nameplate voltage of 230/460V AC, full load current of 3.0/1.5 A at 60 Hz, and nameplate RPM of 1,735 RPM at 60 Hz. It features a TEFC enclosure and rigid base mount.

Where to buy the LEESON 143TTFN16040 motor worldwide?

3G Electric supplies the LEESON 143TTFN16040 motor worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this 1 hp TEFC motor.

How to select the right LEESON general purpose motor for an application?

Select a LEESON motor by matching voltage (e.g., 230/460V AC), horsepower (1 hp), RPM (1,735 RPM), and enclosure (TEFC) to your load requirements. Ensure the rigid base mount aligns with your mounting configuration. Consult a motor selection guide for duty cycle and ambient conditions.

Used in

Common applications for LEESON
Pumps and compressors — LEESON C-face with rigid base motors such as 121179.00 (1 hp, 1,760 RPM) for direct coupling.
Conveyors and material handling — LEESON TEFC general-purpose motors like 121181.00 (2 hp, 1,745 RPM) for continuous duty.
Fans and blowers — LEESON IEC metric motors such as 080T34FH5303 (1 1/2 hp, 3,450 RPM) for high-speed air movement.
Imported machinery — LEESON IEC metric frame 71 motors like 071T17FH5508 (1/2 hp, 1,695 RPM) for drop-in replacement.
DC motor maintenance — LEESON replacement brushes such as 900015.18 for restoring commutation in DC motors.
Process equipment — LEESON 3-phase motors rated 230/460V AC for industrial machinery requiring dual-voltage capability.
