LEESON 145TTDR6039 Rigid Base 3-Phase General Purpose AC Motor - Rigid Base 3-Phase General Purpose AC Motors
LEESONRigid Base 3-Phase General Purpose AC Motors

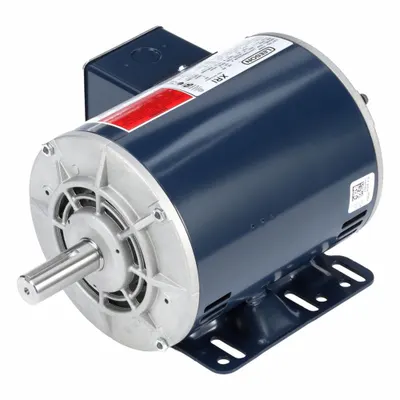

LEESON 145TTDR6039 Rigid Base 3-Phase General Purpose AC Motor

The LEESON General Purpose: Rigid Base Mount (SKU 145TTDR6039, MPN 145TTDR6039) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It is rated at 2 hp, 3,510 RPM at 60 Hz, and operates on…

SKU 3G-OTH-82083

Brand
LEESON
Item
145TTDR6039 Rigid Base 3-Phase General Purpose AC Motor
Part Number
145TTDR6039
Category
Rigid Base 3-Phase General Purpose AC Motors
Available to Order
Also known as:145TTDR6039LEESON
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. Bank transfer and corporate PO accepted.

Technical Specifications

LEESON
Manufacturer Part Number
145TTDR6039
Type
Open Drip Proof, 2 hp, 3,510 RPM, T-Stat
AC
230/460V
Motor Enclosure
ODP
Nameplate RPM @ 60 Hz
3,510 RPM
Full Load Current @ 60 Hz
5.6/2.8 A
Nameplate Voltage @ 60 Hz
230/460V AC

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Ask a question

Request a Quote

Ask a question

LEESON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEESON General Purpose: Rigid Base Mount (SKU 145TTDR6039, MPN 145TTDR6039) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It is rated at 2 hp, 3,510 RPM at 60 Hz, and operates on 230/460V AC with a full load current of 5.6/2.8 A. This motor includes a T-Stat for thermal protection.

Frequently Asked Questions

What is the LEESON 145TTDR6039 motor used for?

The LEESON 145TTDR6039 is a 2 hp, 3,510 RPM general-purpose AC motor with an ODP enclosure, designed for industrial applications such as pumps, fans, conveyors, and compressors where a rigid base mount and 3-phase power are required.

What are the specifications of the LEESON 145TTDR6039 motor?

The LEESON 145TTDR6039 is a 2 hp, 3,510 RPM, 230/460V AC, 3-phase motor with a full load current of 5.6/2.8 A. It features an Open Drip Proof (ODP) enclosure, rigid base mount, and includes a T-Stat for thermal protection.

Where to buy the LEESON 145TTDR6039 motor worldwide?

3G Electric supplies the LEESON 145TTDR6039 motor worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select the right LEESON motor for an application?

To select the right LEESON motor, match the horsepower, RPM, voltage, and enclosure type to your equipment's requirements. For the 145TTDR6039, ensure 3-phase power at 230/460V AC and a rigid base mount. Consult a LEESON catalog or contact 3G Electric for guidance.
