LEGRIS Push-Fit Elbow Fitting: 1/4 in OD x 1/8 in Pipe Size, Push-to-Connect x MNPT - Nickel-Plated Brass Tube Fittings
LEGRISNickel-Plated Brass Tube Fittings

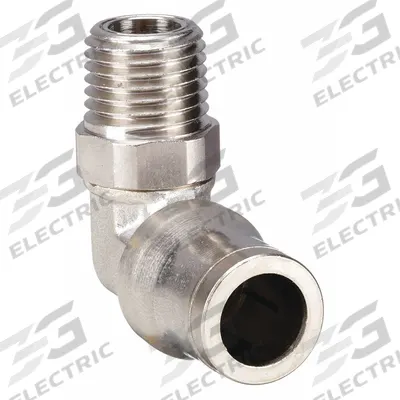

LEGRIS Push-Fit Elbow Fitting: 1/4 in OD x 1/8 in Pipe Size, Push-to-Connect x MNPT

The LEGRIS Push-Fit Elbow Fitting (MPN 3609 56 11) is a nickel-plated brass tube fitting with a 1/4 in OD push-to-connect port and a 1/8 in male NPT thread. This silver, push-to-connect x MNPT configuration enables…

SKU 3G-OTH-482885

Brand
LEGRIS
Item
Push-Fit Elbow Fitting: 1/4 in OD x 1/8 in Pipe Size, Push-to-Connect x MNPT
Category
Nickel-Plated Brass Tube Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LEGRIS
Manufacturer Part Number
3609 56 11
Type
Push-to-Connect x MNPT, Brass, Silver
Thread Size A
1/8"
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LEGRIS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEGRIS Push-Fit Elbow Fitting (MPN 3609 56 11) is a nickel-plated brass tube fitting with a 1/4 in OD push-to-connect port and a 1/8 in male NPT thread. This silver, push-to-connect x MNPT configuration enables quick, tool-free installation in pneumatic or fluid systems. 3G Electric sources this OEM component across 14 industrial departments, with specialist depth in controls and fluid handling to support your application.

Frequently Asked Questions

What is the LEGRIS 3609 56 11 push-fit elbow fitting used for?

The LEGRIS 3609 56 11 is a nickel-plated brass push-fit elbow fitting used to connect 1/4 in OD tubing to a 1/8 in male NPT port in pneumatic or fluid systems. It enables quick, tool-free installation in industrial controls, fluid handling, and automation applications.

What are the specifications of the LEGRIS 3609 56 11?

The LEGRIS 3609 56 11 is a push-to-connect x MNPT elbow fitting with a 1/4 in OD tube port and a 1/8 in male NPT thread. It is made of nickel-plated brass in a silver finish. The manufacturer part number is 3609 56 11.

Where to buy LEGRIS push-fit fittings worldwide?

3G Electric supplies LEGRIS push-fit fittings like the 3609 56 11 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial solutions provider, we source across 14 departments, including controls and fluid handling, to support your application.

How to install a LEGRIS push-to-connect elbow fitting?

To install the LEGRIS push-fit elbow, ensure the tube end is clean and cut square. Push the tube fully into the fitting until it stops. For the male NPT end, apply thread sealant and tighten to the port. No tools are needed for the push-to-connect side. Always depressurize the system before installation.

Used in

Common applications for LEGRIS
Pneumatic actuator speed control — LEGRIS miniature flow control valve 7665 04 10 for meter-out regulation on 4 mm tubing
Compressed air isolation for maintenance — LEGRIS lockout valve 7886 11 11 for 1/8 in NPT systems
Fluid shutoff in water or oil lines — LEGRIS brass ball valve 0492 07 17 with 3/8 in FNPT connections
Push-to-connect air distribution — LEGRIS nylon ball valve 7915 56 11 for 1/4 in tubing with male NPT adapter
Safety lockout on BSPP pneumatic circuits — LEGRIS lockout valve 7880 10 17 for 3/8 in BSPP systems
Compact on/off control in tight spaces — LEGRIS nylon ball valve 7913 56 00 with push-to-connect ports for 1/4 in tubing
