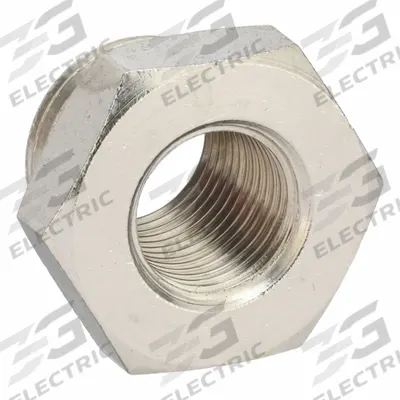

LEGRIS Metal Pipe Straight: Straight, 1/8 in x 1/4 in - Threaded Medium-Pressure Pipe Fittings
LEGRISThreaded Medium-Pressure Pipe Fittings

LEGRIS Metal Pipe Straight: Straight, 1/8 in x 1/4 in

The LEGRIS Metal Pipe Straight is a threaded medium-pressure pipe fitting (SKU 60XK90, MPN 0905 10 13) with a 1/8 in x 1/4 in configuration, featuring Female BSPP Threaded x Male BSPP Threaded connections and a…

SKU 3G-OTH-464201

Brand
LEGRIS
Item
Metal Pipe Straight: Straight, 1/8 in x 1/4 in
Category
Threaded Medium-Pressure Pipe Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LEGRIS
Manufacturer Part Number
0905 10 13
Type
1/8 in x 1/4 in, Female BSPP Threaded x Male BSPP Threaded
Maximum Operating Pressure
870 psi
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LEGRIS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEGRIS Metal Pipe Straight is a threaded medium-pressure pipe fitting (SKU 60XK90, MPN 0905 10 13) with a 1/8 in x 1/4 in configuration, featuring Female BSPP Threaded x Male BSPP Threaded connections and a maximum operating pressure of 870 psi.

Frequently Asked Questions

What is the LEGRIS Metal Pipe Straight used for?

The LEGRIS Metal Pipe Straight is a threaded medium-pressure pipe fitting used to connect pneumatic or hydraulic lines in industrial systems. It joins 1/8 in and 1/4 in BSPP threaded ports, handling pressures up to 870 psi in applications like factory automation, machine tools, and fluid power circuits.

What are the specifications of the LEGRIS 0905 10 13 pipe fitting?

The LEGRIS 0905 10 13 is a straight metal pipe fitting with a 1/8 in x 1/4 in configuration, Female BSPP Threaded x Male BSPP Threaded connections. It has a maximum operating pressure of 870 psi and is designed for medium-pressure pneumatic or hydraulic systems. The SKU is 60XK90.

Where to buy LEGRIS pipe fittings in worldwide?

3G Electric supplies LEGRIS pipe fittings like the 0905 10 13 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial sourcing partner, we provide genuine LEGRIS parts and can quote for bulk or single-unit orders.

How to install a LEGRIS BSPP threaded pipe fitting?

To install a LEGRIS BSPP threaded fitting, apply thread sealant (e.g., PTFE tape) to the male threads, then hand-tighten into the female port. Use a wrench for final snugging—avoid overtightening to prevent thread damage. Ensure the system is depressurized before installation. Always follow manufacturer guidelines for torque.

Used in

Common applications for LEGRIS
Pneumatic actuator speed control — LEGRIS miniature flow control valve 7665 04 10 for meter-out regulation on 4 mm tubing
Compressed air isolation for maintenance — LEGRIS lockout valve 7886 11 11 for 1/8 in NPT systems
Fluid shutoff in water or oil lines — LEGRIS brass ball valve 0492 07 17 with 3/8 in FNPT connections
Push-to-connect air distribution — LEGRIS nylon ball valve 7915 56 11 for 1/4 in tubing with male NPT adapter
Safety lockout on BSPP pneumatic circuits — LEGRIS lockout valve 7880 10 17 for 3/8 in BSPP systems
Compact on/off control in tight spaces — LEGRIS nylon ball valve 7913 56 00 with push-to-connect ports for 1/4 in tubing
