MACROMATIC Liquid Level Relay: Socket Mounted, Dual Probe, 10 A Current Rating, 240V AC - Socket-Mounted Relays
MACROMATICSocket-Mounted Relays

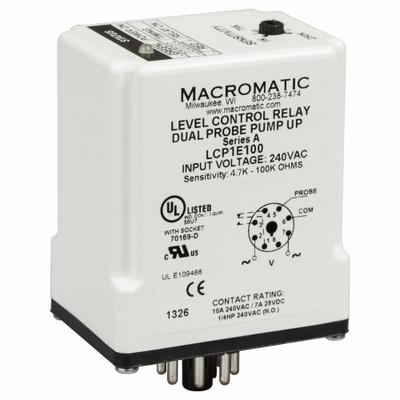

MACROMATIC Liquid Level Relay: Socket Mounted, Dual Probe, 10 A Current Rating, 240V AC

The MACROMATIC Liquid Level Relay: Socket Mounted (MPN LCP1E100-G) is a socket-mounted relay with a Pump Up function for dual-probe level control. It features a contact rating of 10 A @ 240V AC and 7 A @ 28V DC, with…

SKU 3G-OTH-39366

Brand
MACROMATIC
Item
Liquid Level Relay: Socket Mounted, Dual Probe, 10 A Current Rating, 240V AC
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MACROMATIC
Manufacturer Part Number
LCP1E100-G
Type
Dual Probe, Pump Up
AC
240V
Current Rating
10 A
Mounting Style
Socket
Relay Function
Pump Up
Number of Probes
Dual Probe
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
7 A @ 28V DC
Electrical Connection
8-Pin Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MACROMATIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MACROMATIC Liquid Level Relay: Socket Mounted (MPN LCP1E100-G) is a socket-mounted relay with a Pump Up function for dual-probe level control. It features a contact rating of 10 A @ 240V AC and 7 A @ 28V DC, with an 8-pin terminal electrical connection.

Used in

Common applications for MACROMATIC
Motor protection — MACROMATIC VAKP240A voltage sensing relay monitors undervoltage in motor control centers
Pump level control — MACROMATIC LCP2E100-G liquid level relay manages pump up operations in water tanks
Conveyor timing — MACROMATIC TAA1U-G time delay relay provides interval ON control for conveyor systems
Current monitoring — MACROMATIC CAH50A2AD-G monitor relay detects undercurrent in industrial machinery
HVAC sequencing — MACROMATIC TD-88168 multi-function time delay relay sequences fan or compressor starts
