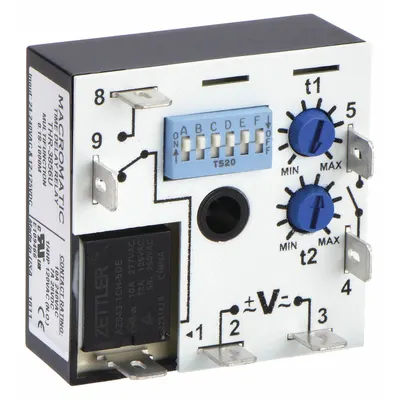

MACROMATIC Multi-Function Encapsulated Timing Relay: Surface Mounted
The MACROMATIC Multi-Function Encapsulated Timing Relay is a surface-mounted relay (SKU 3G-OTH-130395, MPN THR-3856U) rated for 24 A @ 240V AC and 12 A @ 125V DC, with an operating voltage range of 24 to 240V AC and…
SKU 3G-OTH-130395
Also listed as: THR3856U · THR 3856U
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The MACROMATIC Multi-Function Encapsulated Timing Relay is a surface-mounted relay (SKU 3G-OTH-130395, MPN THR-3856U) rated for 24 A @ 240V AC and 12 A @ 125V DC, with an operating voltage range of 24 to 240V AC and 12 to 125V DC. It features a Repeat Cycle OFF 1st staging mode.
Frequently Asked Questions
What is the MACROMATIC Multi-Function Encapsulated Timing Relay used for?
This relay is used for industrial timing and sequencing applications, such as controlling motors, conveyors, and lighting systems. Its Repeat Cycle OFF 1st mode makes it ideal for processes requiring a delay before the first cycle. It suits harsh environments due to its encapsulated design.
What are the specifications of the MACROMATIC THR-3856U timing relay?
The MACROMATIC THR-3856U is a surface-mounted timing relay rated for 24 A @ 240V AC and 12 A @ 125V DC. It operates on 24 to 240V AC and 12 to 125V DC, with a Repeat Cycle OFF 1st staging mode. The encapsulated housing protects against dust and moisture.
Where to buy the MACROMATIC THR-3856U timing relay worldwide?
You can source the MACROMATIC THR-3856U from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install a MACROMATIC encapsulated timing relay?
Mount the relay on a clean, dry surface using the provided hardware. Connect the control voltage (24 to 240V AC or 12 to 125V DC) per the wiring diagram. Set the Repeat Cycle OFF 1st mode via the DIP switches. Ensure the load does not exceed 24 A @ 240V AC.
Used in
Common applications for MACROMATICMACROMATIC Products
3G Electric supplies MACROMATIC surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
