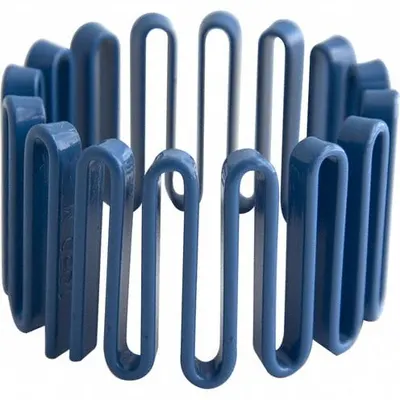

MARTIN GRID COUPLING GRID - 1130T GRID AND BELOW: 1040T Coupling Size

The MARTIN GRID COUPLING GRID is a steel grid coupling component from MARTIN, designed for the 1040T coupling size. It accommodates a 2 1/4 in hub diameter and is compatible with the 1040T-HUB15/16 hub. This grid is…

SKU 3G-OTH-132422

Also listed as: 1040TGRID · 1040T GRID

Brand

MARTIN GRID COUPLING

Item

GRID - 1130T GRID AND BELOW: 1040T Coupling Size

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

MARTIN GRID COUPLING

Manufacturer Part Number

1040T-GRID

Type

- 1130T GRID AND BELOW: 1040T Coupling Size, For 2 1/4 in Hub Dia, Steel

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

MARTIN GRID COUPLING Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is a MARTIN GRID COUPLING GRID used for?

The MARTIN GRID COUPLING GRID is a steel component used in power transmission systems to connect rotating shafts while accommodating angular misalignment. It is designed for the 1040T coupling size and fits a 2 1/4 in hub diameter, making it suitable for industrial machinery applications.

What are the specifications of the MARTIN 1040T-GRID?

The MARTIN 1040T-GRID is a steel grid coupling component for the 1040T coupling size. It fits a 2 1/4 in hub diameter and is compatible with the 1040T-HUB15/16 hub. This grid is designed for angular misalignment applications and is part of the 1130T GRID AND BELOW series.

Where to buy MARTIN GRID COUPLING GRID worldwide?

3G Electric supplies the MARTIN GRID COUPLING GRID worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this 1040T-GRID steel grid for angular misalignment applications.

How to select the right MARTIN grid coupling size?

To select the correct MARTIN grid coupling, match the coupling size (e.g., 1040T) to your shaft diameters and hub bore. The 1040T-GRID grid fits a 2 1/4 in hub diameter and is designed for angular misalignment. Always verify hub compatibility, such as the 1040T-HUB15/16, before ordering.

Used in

Common applications for MARTIN GRID COUPLING

Pump drives — MARTIN GRID COUPLING assemblies (e.g., 1070T10-SUBASY) used to connect motor to centrifugal pump shafts.

Conveyor systems — Grid couplings like the 1100T-GRID employed in belt conveyor head shafts to absorb shock loads.

Compressor units — Cover grid assemblies (e.g., 1080T20-SUBASY) for parallel shaft connections in reciprocating compressors.

Mixer and agitator drives — Angular misalignment couplings (e.g., 1120T10-SUBASY) for vertical mixer shafts.

Fan and blower applications — Steel grid components (e.g., 1080T-GRID) for torque transmission in industrial fans.

Oil and gas pumping — MARTIN GRID COUPLING assemblies (e.g., 1060T10-SUBASY) for pipeline pump drives.
