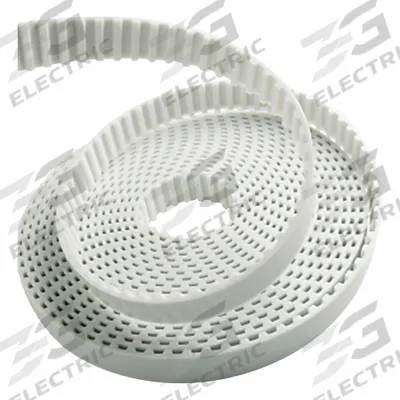

MEGADYNE Timing Belts: Megapower, 5 mm Pitch, 16 mm Top Wd, T5-545-16, 109 Teeth
The MEGADYNE Megapower T5-545-16 is a closed-loop trapezoidal timing belt with a 5 mm pitch, 16 mm top width, and 545 mm outside length, featuring 109 teeth. This T5 section belt is identified by manufacturer part…
SKU 3G-OTH-116683
Need installation or engineering help?
Ask a question
Product Description
The MEGADYNE Megapower T5-545-16 is a closed-loop trapezoidal timing belt with a 5 mm pitch, 16 mm top width, and 545 mm outside length, featuring 109 teeth. This T5 section belt is identified by manufacturer part number 16T5/545 and industry number T5-545-16.
Frequently Asked Questions
What is the MEGADYNE Megapower T5-545-16 timing belt used for?
The MEGADYNE Megapower T5-545-16 is a closed-loop trapezoidal timing belt used for synchronous power transmission in industrial machinery, packaging equipment, and automation systems. Its 5 mm pitch and 16 mm top width provide precise indexing and positioning in drives requiring accurate timing.
What are the specifications of the MEGADYNE 16T5/545 timing belt?
The MEGADYNE 16T5/545 Megapower timing belt has a 5 mm pitch, 16 mm top width, 545 mm outside length, and 109 teeth. It features a trapezoidal tooth profile, closed-loop length type, and is identified by industry number T5-545-16. The belt series is Megapower.
Where to buy MEGADYNE timing belts worldwide?
You can source the MEGADYNE Megapower T5-545-16 timing belt through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this and other MEGADYNE belt sizes.
How to select the correct MEGADYNE timing belt for an application?
To select the correct MEGADYNE Megapower timing belt, match the pitch, top width, outside length, and tooth count to your drive design. The T5-545-16 has a 5 mm pitch, 16 mm width, 545 mm length, and 109 teeth. Ensure the trapezoidal tooth profile fits your pulleys. Consult MEGADYNE's catalog for load and speed ratings.
Used in
Common applications for MEGADYNEMEGADYNE Products
3G Electric supplies MEGADYNE t5 section trapezoidal timing belts. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
